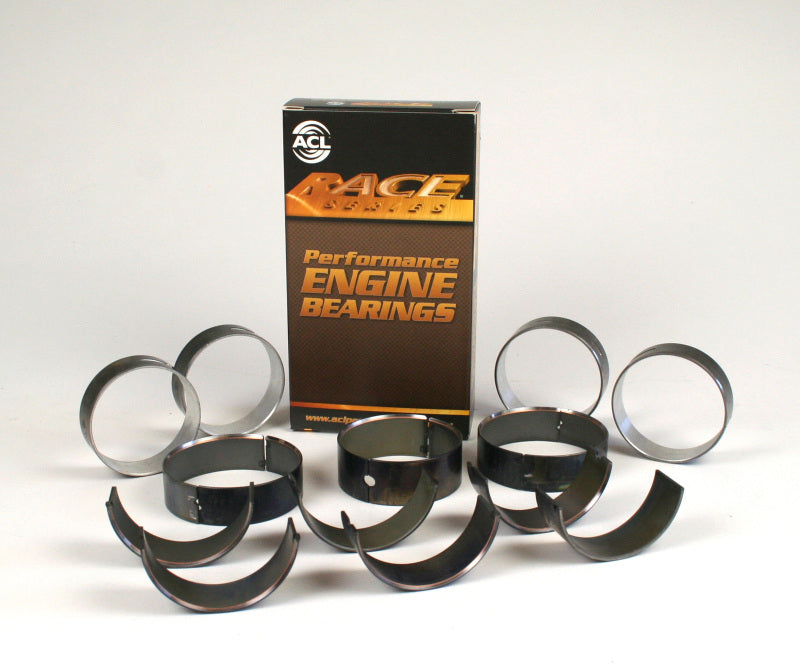

ACL Race Series Standard Size Main Bearing Set for Subaru BRZ FA20
5M8312H-STD
$270.32 USD
ACL's Race Series standard size main bearing set is built for the Subaru FA20 flat-four, the engine in the BRZ, FR-S and 86. Part number 5M8312H-STD is the "H" set, ACL's Race Series version of the main bearing. It suits builders refitting an FA20 with a crank that is still at standard size.
Key features
- Extended main bearing grooves: the uppers have a full 180° groove with a matching partial groove in the lowers. This reduces interruption to the big end oil supply.
- Tapered groove run-out: smooths the big end supply cut-off, which avoids pressure pulsing and cavitation.
- Increased crush: higher radial contact pressure locks the bearing into the housing and improves heat transfer.
- Increased eccentricity: helps the shell adapt to bore distortion under load.
- Enlarged ID chamfers: make room for the larger fillet radii found on performance crankshafts.
- No cosmetic tin flash: ACL leaves it off so plating can't migrate and distort the shell. The result is better contact between bearing and housing.
Specifications
| Brand | ACL |
|---|---|
| Part number | 5M8312H-STD |
| Engine | Subaru FA20 |
| Bearing type | Main |
| Oversize | Standard |
| Series | ACL Race Series (H) |
Fitment
Fits Subaru FA20. Confirm your vehicle below, or match by part number 5M8312H-STD before ordering.
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2013-2016 | Scion | FR-S | Base |
| 2022-2026 | Subaru | BRZ | Limited |
| 2022-2025 | Subaru | BRZ | Premium |
| 2026 | Subaru | BRZ | Series.Yellow |
| 2024-2026 | Subaru | BRZ | TS |
| 2016-2017 | Subaru | Crosstrek | Base |
| 2016 | Subaru | Crosstrek | Hybrid |
| 2016 | Subaru | Crosstrek | Hybrid Touring |
| 2016-2017 | Subaru | Crosstrek | Limited |
| 2016-2017 | Subaru | Crosstrek | Premium |
| 2014-2018 | Subaru | Forester | 2.5i |
| 2014-2018 | Subaru | Forester | 2.5i Limited |
| 2014-2018 | Subaru | Forester | 2.5i Premium |
| 2014-2018 | Subaru | Forester | 2.5i Touring |
| 2012-2016 | Subaru | Impreza | Base |
| 2012-2016 | Subaru | Impreza | Limited |
| 2012-2016 | Subaru | Impreza | Premium |
| 2012-2016 | Subaru | Impreza | Sport Limited |
| 2012-2016 | Subaru | Impreza | Sport Premium |
| 2013-2019 | Subaru | Legacy | 2.5i |
| 2013-2019 | Subaru | Legacy | 2.5i Limited |
| 2013-2019 | Subaru | Legacy | 2.5i Premium |
| 2014,2017-2019 | Subaru | Legacy | 2.5i Sport |
| 2013-2019 | Subaru | Outback | 2.5i |
| 2013-2019 | Subaru | Outback | 2.5i Limited |
| 2013-2019 | Subaru | Outback | 2.5i Premium |
| 2017-2019 | Subaru | Outback | 2.5i Touring |
| 2015 | Subaru | XV Crosstrek | Base |
| 2014-2015 | Subaru | XV Crosstrek | Hybrid |
| 2014-2015 | Subaru | XV Crosstrek | Hybrid Touring |
| 2013-2015 | Subaru | XV Crosstrek | Limited |
| 2013-2015 | Subaru | XV Crosstrek | Premium |
| 2017-2020 | Toyota | 86 | Base |
| 2018-2020 | Toyota | 86 | GT |
| 2020 | Toyota | 86 | Hakone Edition |
| 2017 | Toyota | 86 | Special Edition |
| 2019 | Toyota | 86 | TRD Special Edition |
| 2022-2024 | Toyota | GR86 | Base |
| 2022-2024 | Toyota | GR86 | Premium |
| 2024 | Toyota | GR86 | TRUENO Edition |
