AMS Performance front mount intercooler kit for FA24 – AMS.50.09.0010-1

AMS Performance Front Mount Intercooler Kit with Charge Pipes for Subaru WRX FA24 (2022+)

$1,599.95 USD
Skip to product information
AMS Performance front mount intercooler kit for FA24 – AMS.50.09.0010-1

AMS Performance Front Mount Intercooler Kit with Charge Pipes for Subaru WRX FA24 (2022+)

AMS.50.09.0010-1
$1,599.95 USD

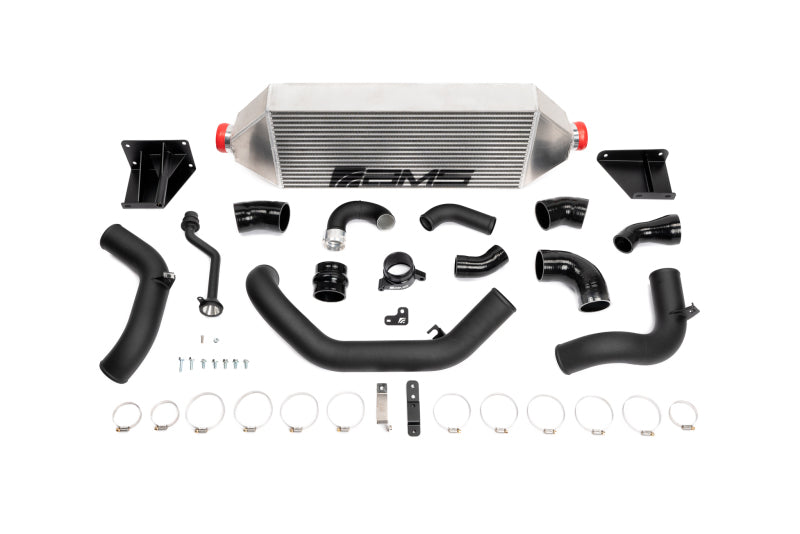

AMS Performance's front mount intercooler kit for the Subaru WRX FA24 replaces the factory top mount unit with a 26 x 12 x 4 inch bar and plate core. AMS lists a 347% increase in core volume over the stock top mount. The kit includes the charge pipes, so the WRX piping is covered in one box.

Key features

  • 4 inch thick core as standard: the 26 x 12 x 4 inch bar and plate core fills the front bumper opening, which gives the charge air more heat-transfer surface.
  • Lower charge air temps: AMS reports a 54.4°F reduction in charge air temperature compared with the OEM top mount intercooler.
  • 3 inch mandrel-bent aluminum piping: the kit includes custom silicone couplers with ID-matched connections, CNC billet connection flanges, clamps and hardware.
  • Factory features retained: the tow hook mount is built into the intercooler bracket. The ambient air temperature sensor and the washer fluid filler neck are relocated.
  • Hand-welded and tested: aluminum end tanks are TIG welded by hand in the USA, and AMS pressure tests every intercooler before boxing.

Specifications

Brand AMS Performance
Part number AMS.50.09.0010-1
Engine Subaru FA24
Configuration Front mount, includes charge pipes
Core type Bar and plate
Core size 26 x 12 x 4 in
Pipe diameter 3 in
Material Aluminum end tanks and mandrel-bent aluminum piping

Installation needs slight trimming of the plastic engine bay liners and removal of the factory bumper beam. The kit is not compatible with OEM intake piping or most aftermarket intake piping, and AMS does not guarantee fitment with aftermarket intakes other than its own.

Documents

Fitment

Fits Subaru FA24. Match by part number AMS.50.09.0010-1 before ordering.

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or reproductive harm. For more information, go to www.P65Warnings.ca.gov.
