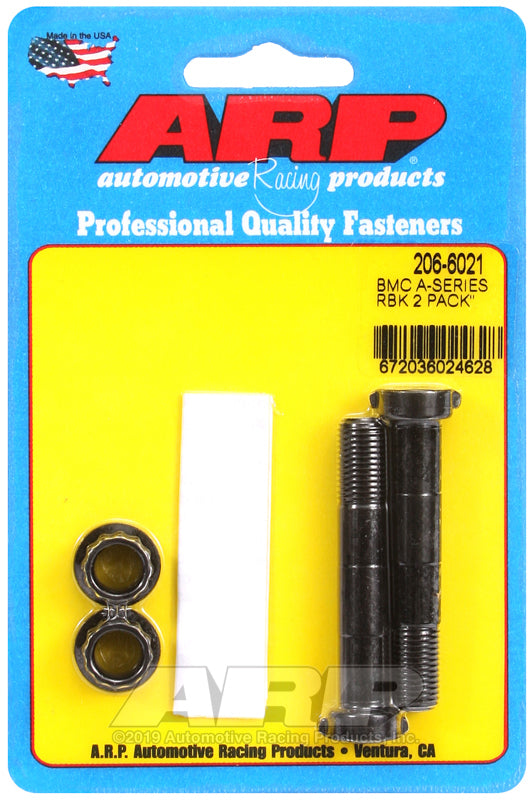

ARP BMC A Series rod bolt kit – 206-6021

ARP BMC A Series 3/8 in Rod Bolt Kit, 2-Piece Set

$27.69 USD
Skip to product information
ARP BMC A Series rod bolt kit – 206-6021

ARP BMC A Series 3/8 in Rod Bolt Kit, 2-Piece Set

206-6021
$27.69 USD

ARP's BMC A Series rod bolt kit is a 3/8 in, 2-piece set for press-fit installation in connecting rods. ARP's instructions for part 206-6021 call for the stretch method when tightening, with a torque spec for builders who don't have a stretch gauge.

Key features

  • Press-fit installation: the bolts press into the connecting rods before the caps go on. ARP says the bolt hole needs an adequate chamfer at the top to clear the radius under the bolt head.
  • Stretch method preferred: ARP specifies a stretch of .0065–.0070 in. Without a stretch gauge, ARP gives 55 ft-lbs using ARP Ultra-Torque Fastener Assembly Lubricant.
  • Re-size the rods after install: ARP says the connecting rods should always be re-sized once new rod bolts are fitted.
  • Track bolt length: ARP says to log each bolt's original non-torqued length and replace any bolt that is permanently deformed or has grown by more than .001 in.

Specifications

Brand ARP
Part number 206-6021
Quantity 2-piece kit
Bolt diameter 3/8 in
Socket size 7/16 in, 12-point
Installation Press fit
Stretch .0065–.0070 in
Torque (with ARP Ultra-Torque lubricant) 55 ft-lbs

Documents

Fitment

Universal fit. Check the specifications above against your application.
