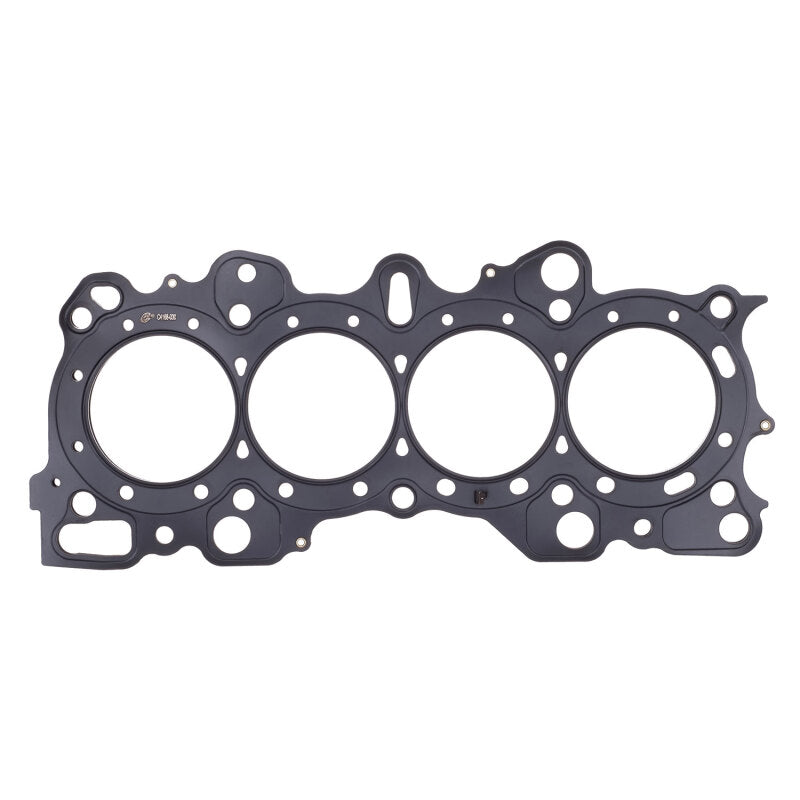

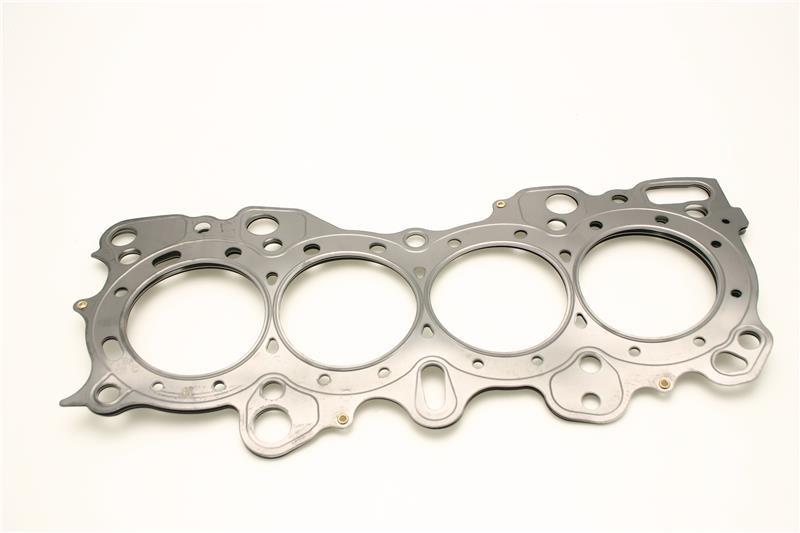

Cometic MLS Head Gasket 82mm .036 in for Honda Civic Integra B16 B18
C4168-036
Sale price
$96.52 USD
Regular price
$107.24 USD
Cometic Gasket's .036 in MLS head gasket for the Honda B16 and B18 fits 82 mm bore builds, including the B16A2, B16A3, B17A1, B18C1 and B18C5. It suits Integra, Civic and Civic del Sol engines that need a multi-layer steel gasket in place of a composite one. This is the .036 in compressed thickness. Cometic lists other thicknesses under separate part numbers.
Key features
- Multi-layer steel construction: three layers of stainless steel, with embossed outer layers and an uncoated stainless shim layer in the center.
- Coated outer layers: the outer layers carry a Viton coating, a heat-resistant fluoroelastomer made for harsh sealing conditions.
- Lower clamp load: the embossments spread load across the sealing area and cause less bore distortion.
- No sealants needed: the coated layers seal the head and block surfaces on their own.
- .036 in compressed thickness: the shim layer sets the thickness, so this one is built specifically to .036 in.
Specifications
| Brand | Cometic Gasket |
|---|---|
| Part number | C4168-036 |
| Engine | Honda B16, B18 |
| Type | MLS (multi-layer steel) |
| Layers | 3 |
| Bore | 82 mm |
| Compressed thickness | .036 in |
| Bore shape | Round |
Fitment
Fits Honda B16 and B18. Confirm your vehicle below, or match by part number C4168-036 before ordering.
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1994-2001 | Acura | Integra | GS-R |
| 1997-1998,2000-2001 | Acura | Integra | Type R |
| 1999-2000 | Honda | Civic | Si |
| 1994-1995 | Honda | Civic del Sol | Si |
| 1994-1997 | Honda | Civic del Sol | VTEC |
