Cometic Gasket MLS Head Gasket 98mm Bore .060 for Subaru Legacy EJ22E Turbo SOHC 16V
C4263-060
Sale price
$74.68 USD
Regular price
$82.96 USD

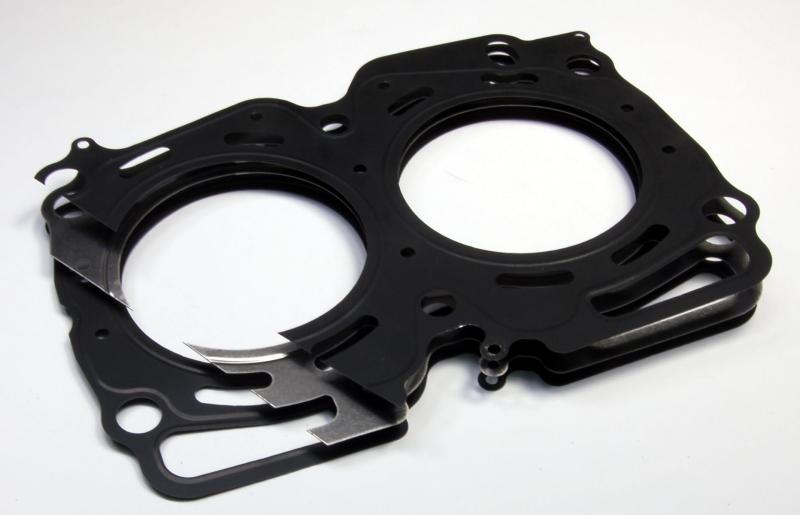

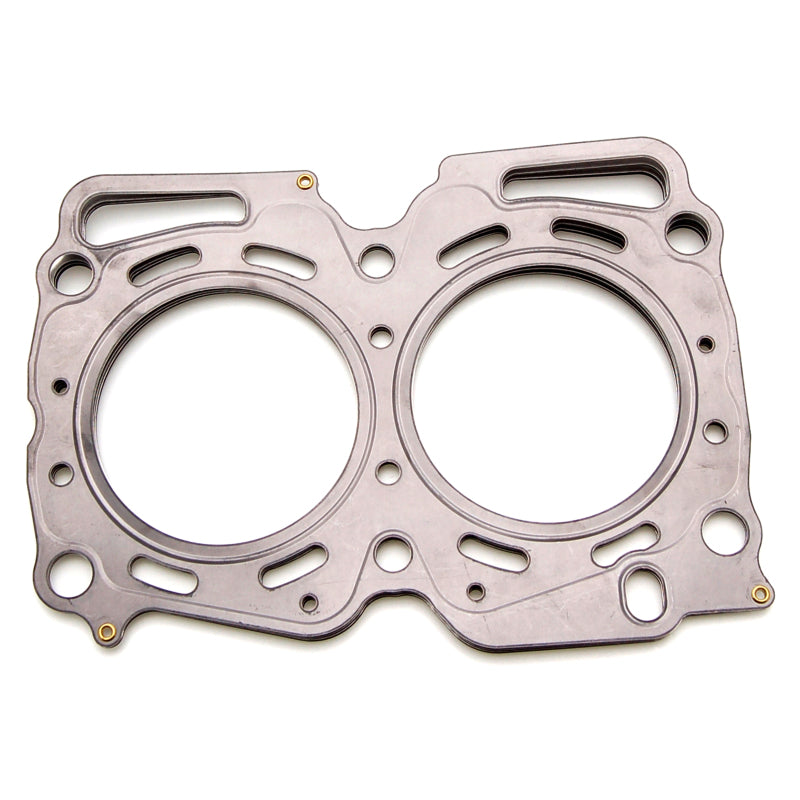

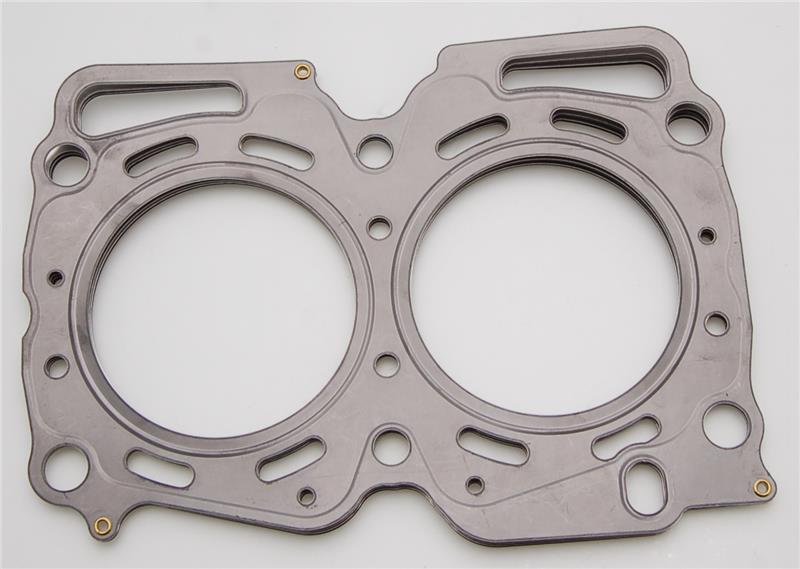

Cometic Gasket's .060" MLS head gasket for the Subaru EJ22 (SOHC 16V, EJ22E Turbo) has a 98 mm bore and five layers of stainless steel. The .060" compressed thickness is the defining spec, so pick it to suit your deck height and piston-to-head clearance. It's listed for the Legacy.
Key features
- Viton-coated outer layers: the embossed outer layers are coated on both sides with Viton, a fluoroelastomer rated heat resistant to 250 °C (482 °F).
- Uncoated stainless shim layer: the center layer sets the thickness and is varied to hit different compressed thicknesses.
- Lower clamp load: it needs less clamp load, which means less bore distortion, and it spreads load evenly across the sealing area.
- No sealant needed: Cometic says MLS gaskets seal without sealants.
- Aluminum head to aluminum or iron block: the multi-layer design handles the shear from the two materials expanding at different rates.
Specifications
| Brand | Cometic Gasket |
|---|---|
| Part number | C4263-060 |
| Engine | Subaru EJ22 |
| Material | MLS (multi-layer steel) |
| Thickness | .060 in (compressed) |
| Bore | 98 mm |
| Layers | 5 |
| Bore shape | Round |
Fitment
Fits Subaru EJ22. Confirm your vehicle below, or match by part number C4263-060 before ordering.
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1994 | Subaru | Legacy | Alpine Sport |
| 1994 | Subaru | Legacy | GT |
| 1991-1994 | Subaru | Legacy | L |
| 1991-1994 | Subaru | Legacy | LS |
| 1991-1994 | Subaru | Legacy | LSi |
| 1994 | Subaru | Legacy | Outdoor |
| 1991-1994 | Subaru | Legacy | Sport |
| 1994 | Subaru | Legacy | Sun Sport |
| 1994 | Subaru | Legacy | Touring |
