CSF dual engine oil cooler kit for Honda K20 – 8343

CSF Dual Engine Oil Cooler Kit for Honda Civic Type R FL5 K20 (2023+)

8343
$1,995.00 USD

CSF's #8343 dual engine oil cooler kit adds external oil cooling to the Honda K20 in the FL5 Civic Type R. The K20C1 has no provision for an external oil cooler from the factory, so this kit supplies the coolers, lines, thermostat plate and ducting. It's aimed at owners who track the car.

Key features

  • Two dual pass coolers: two CSF #8119 High-Performance Dual Pass Oil Coolers add over 2 quarts (2 liters) of oil capacity.

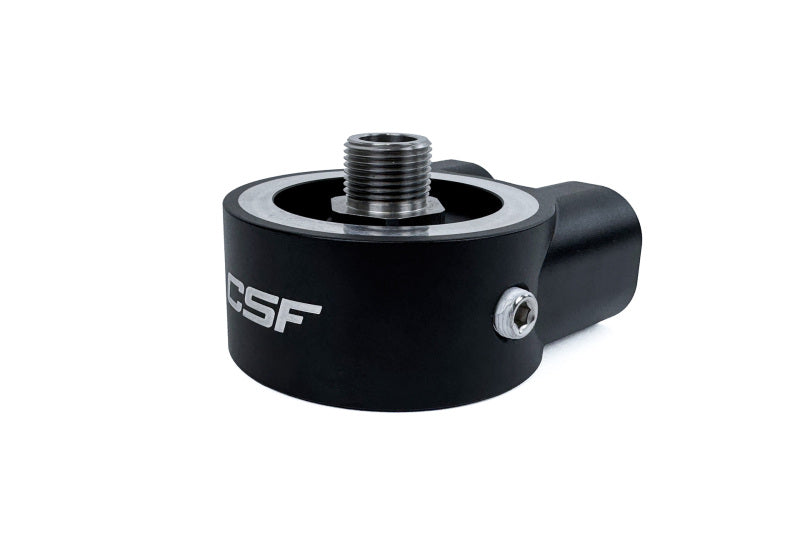

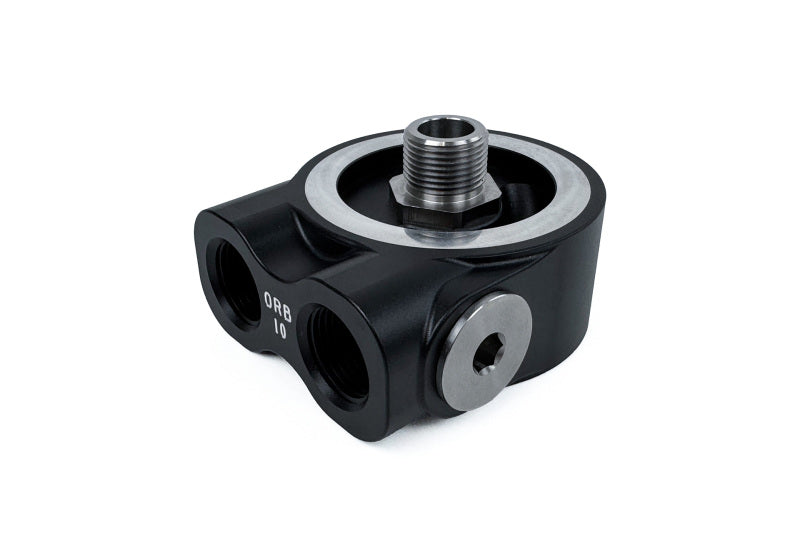

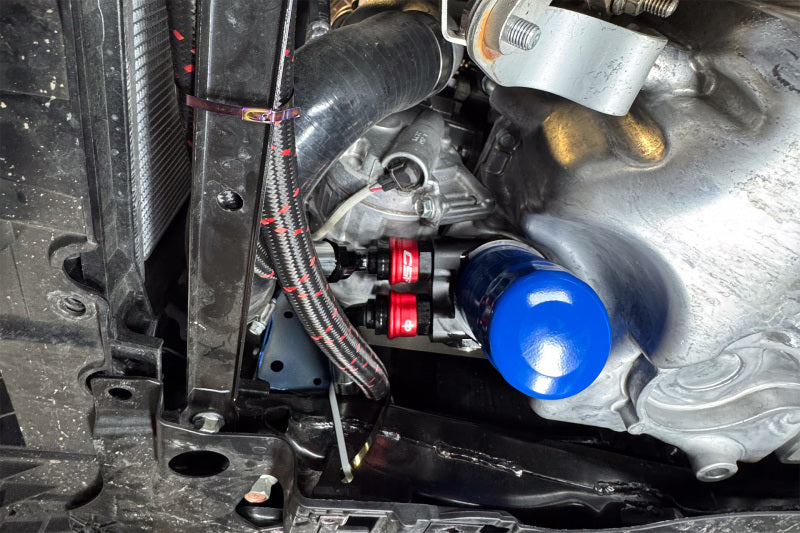

  • Thermostatic sandwich plate: a CNC billet plate with a 175-195°F (80-90°C) thermostat. It also has a 1/8 NPT port for an aftermarket oil temp sensor.

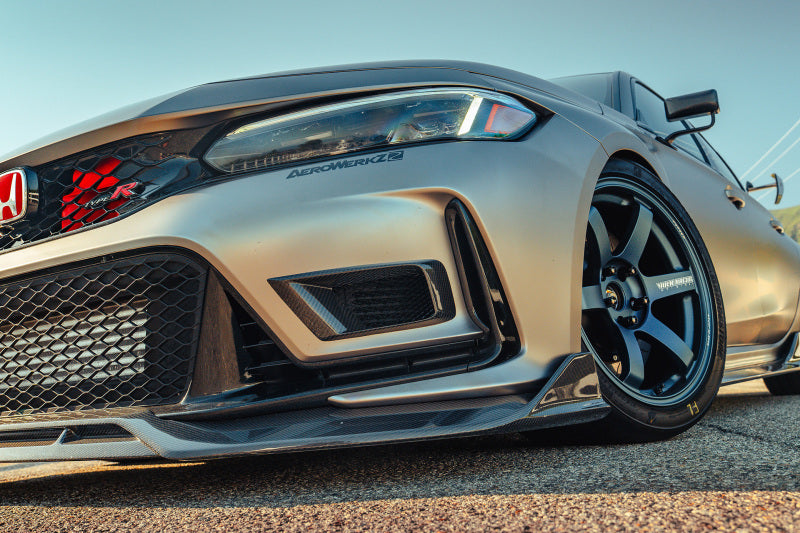

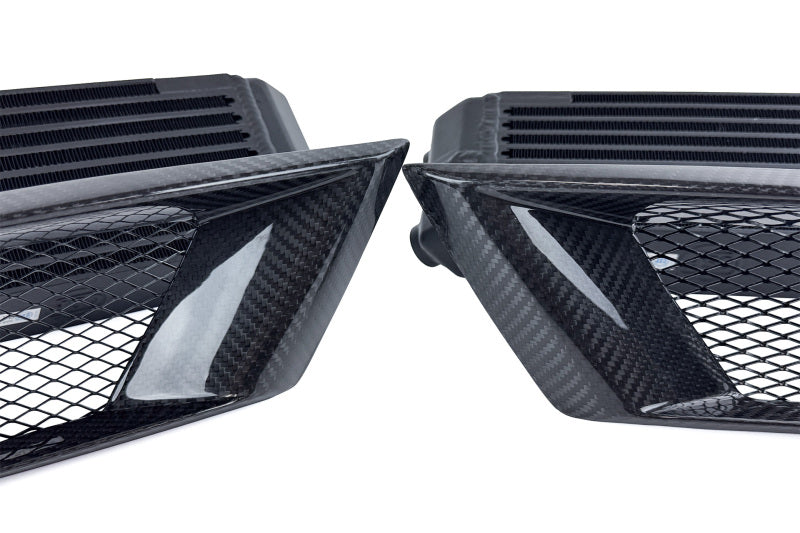

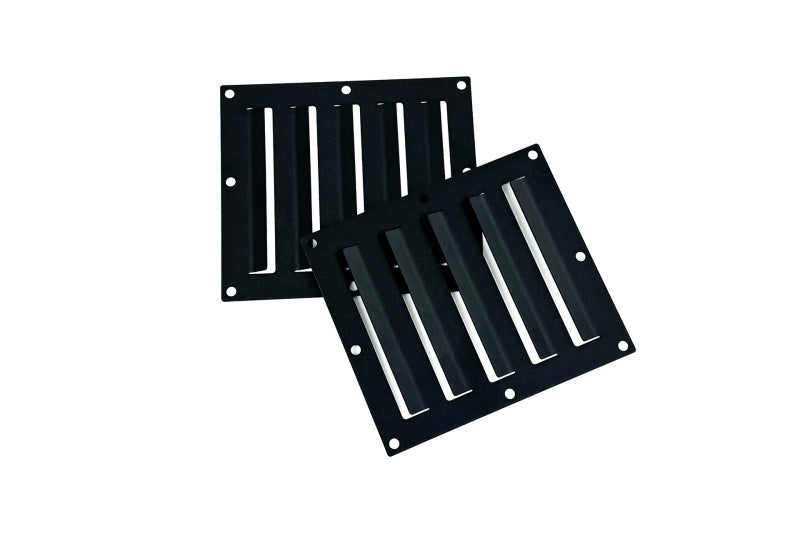

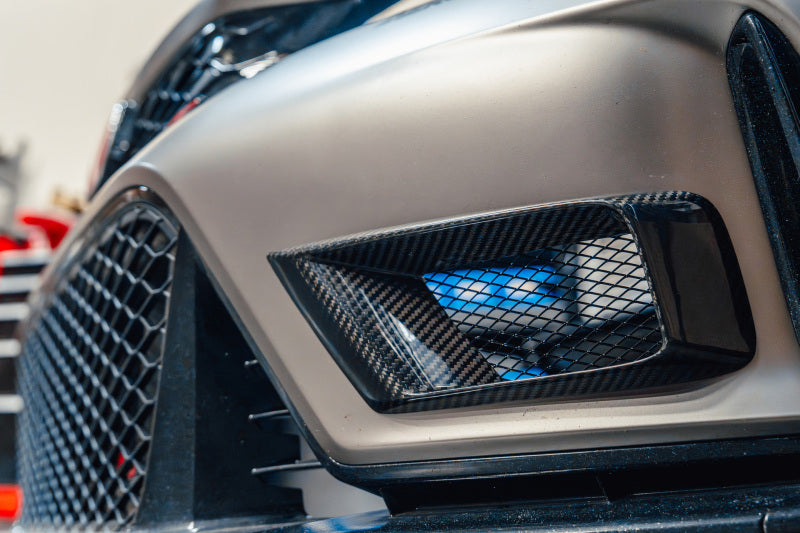

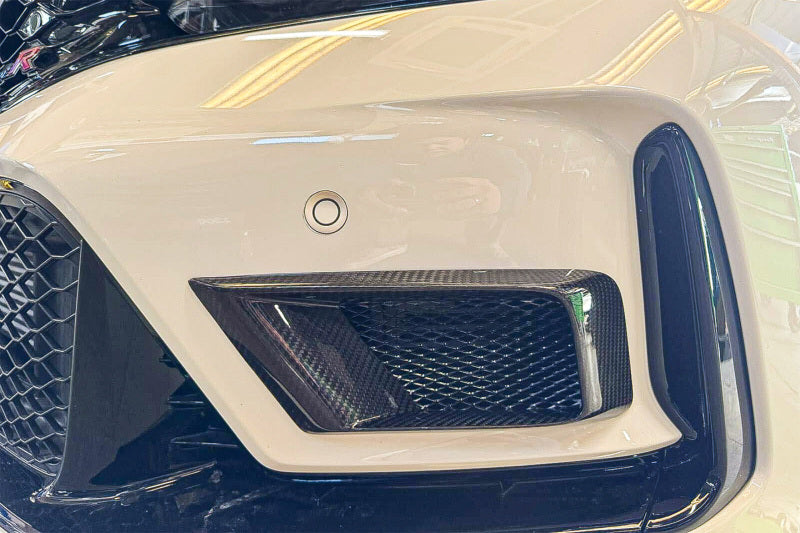

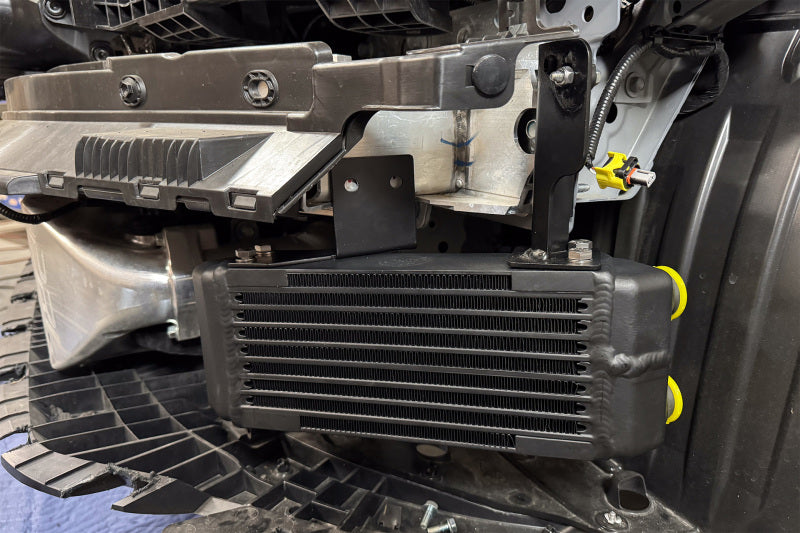

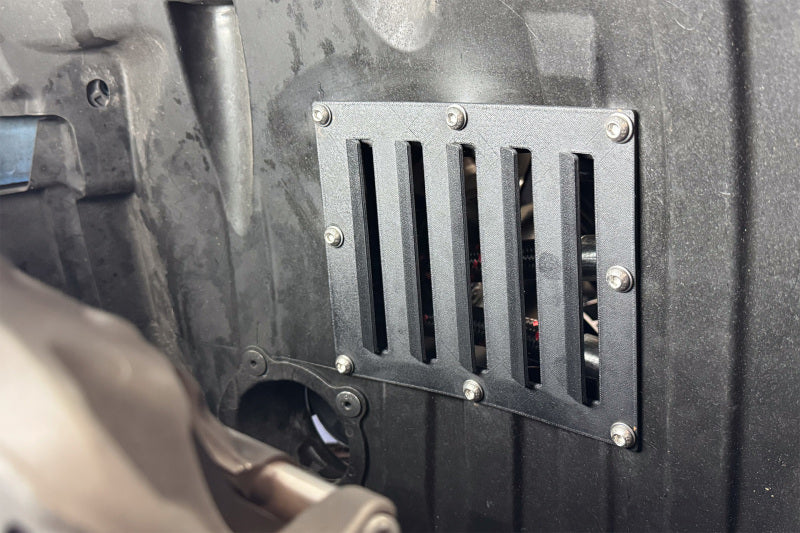

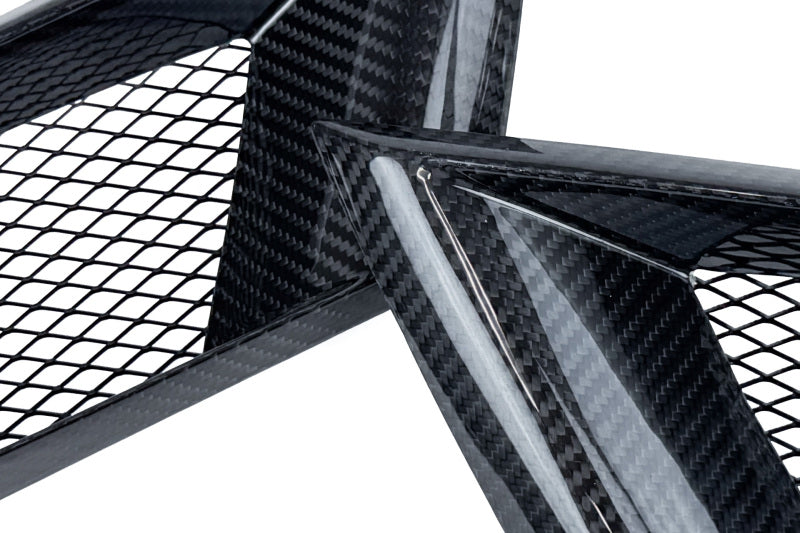

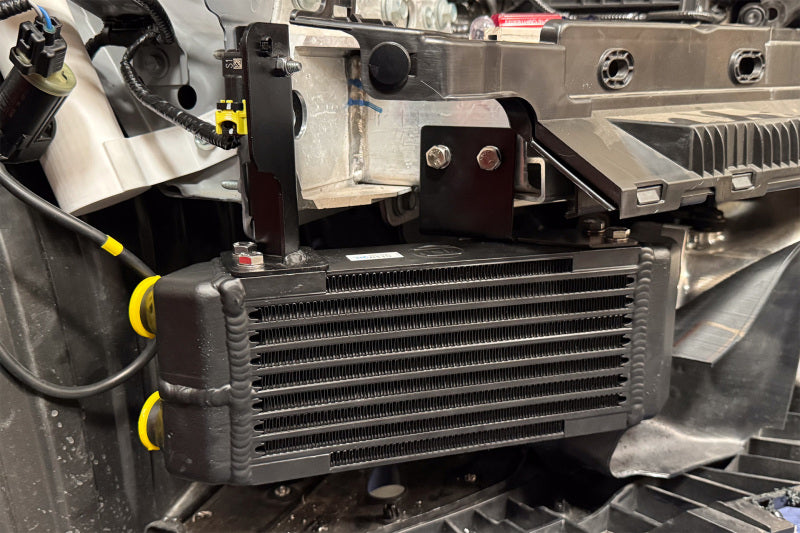

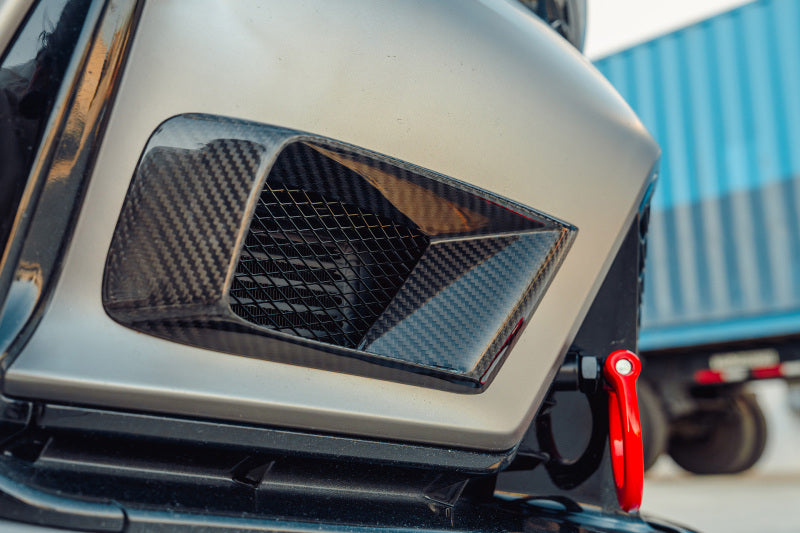

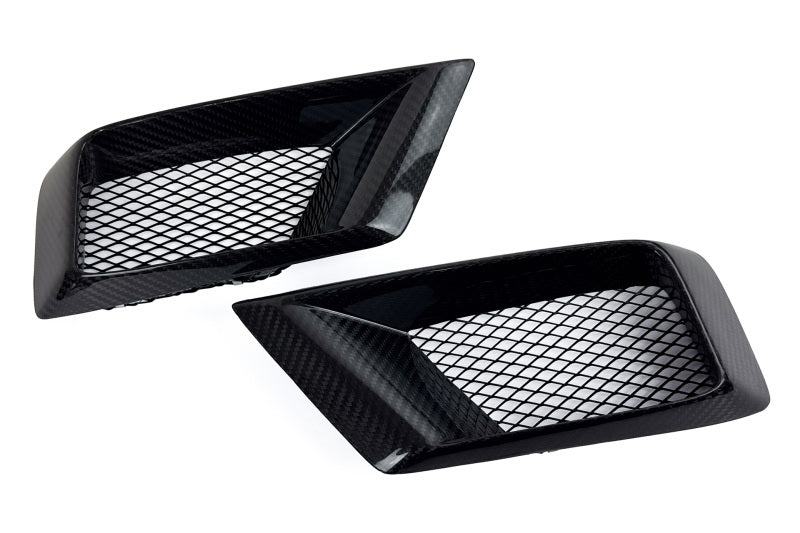

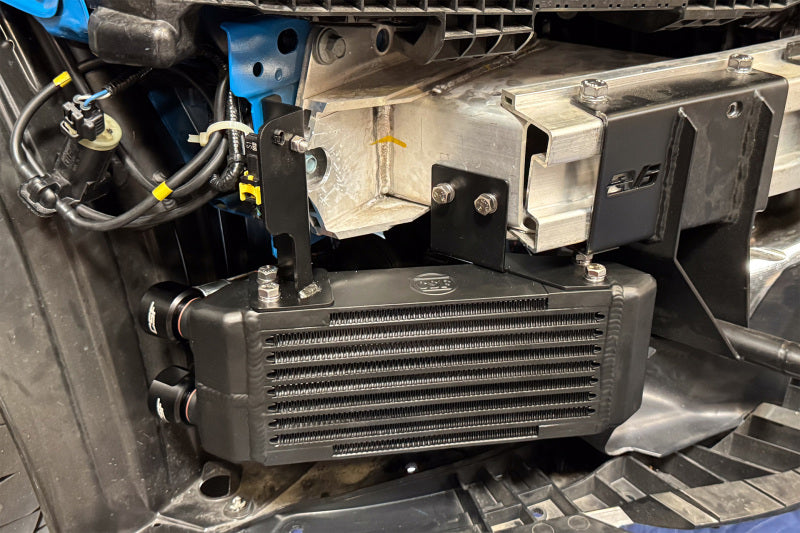

  • Side-of-bumper placement: CSF mounts the coolers at the sides of the bumper rather than behind the grille, where they would add heat to the radiator's airflow. Pre-preg carbon fiber bumper vents and laser cut louvered fender liner vents improve airflow to and from the coolers.

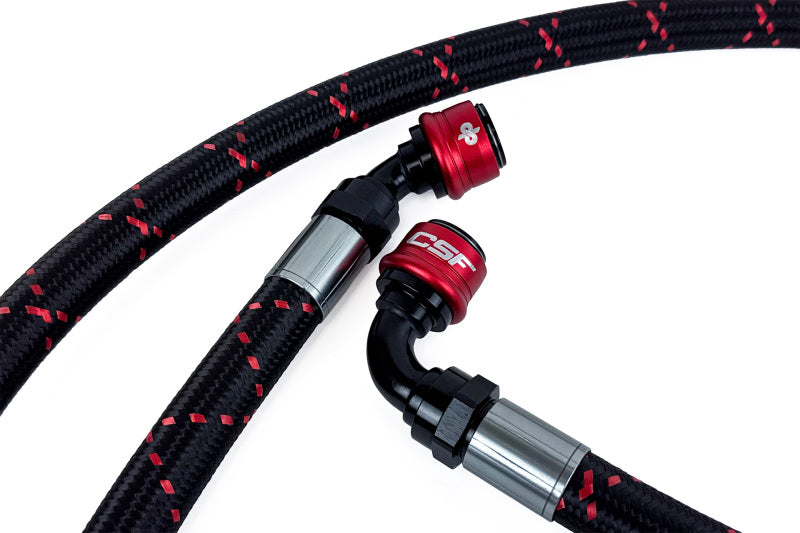

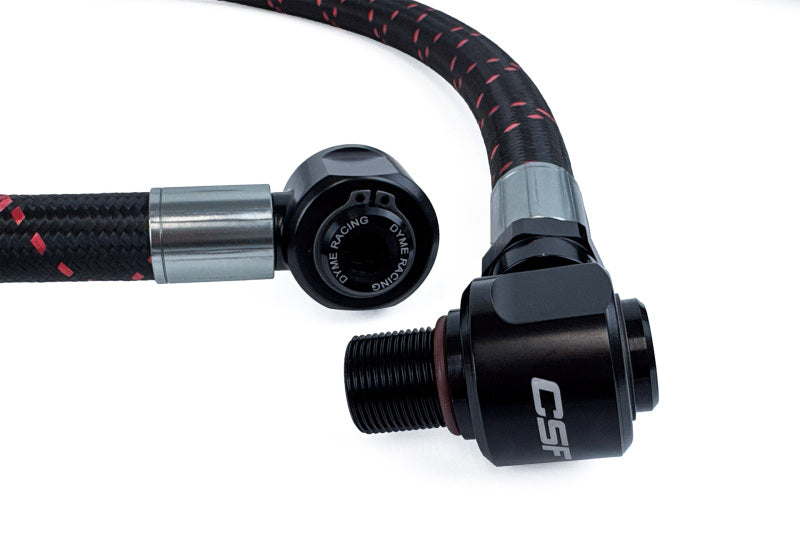

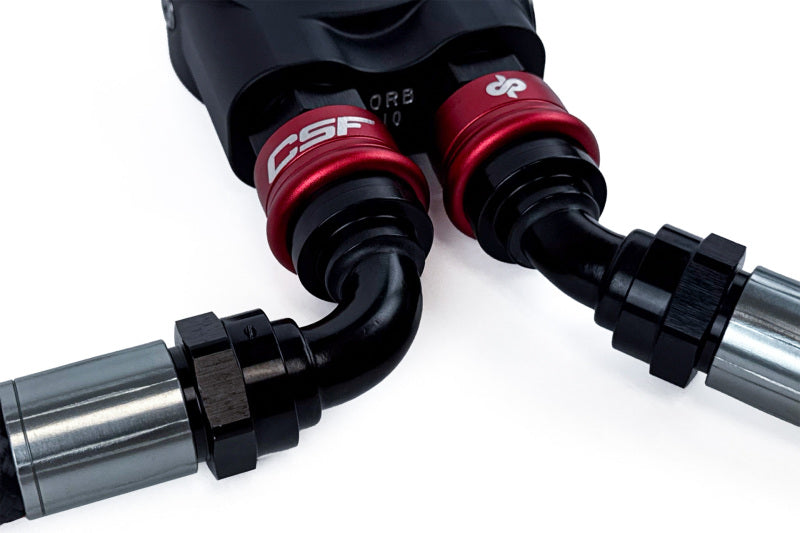

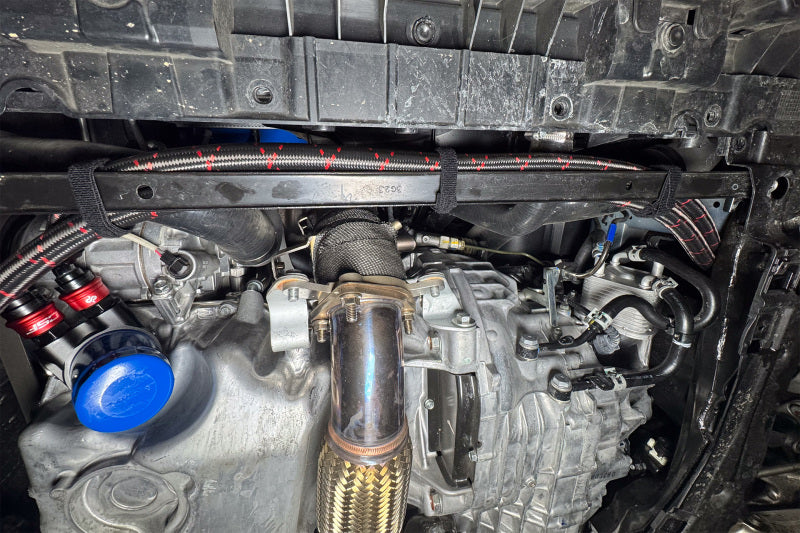

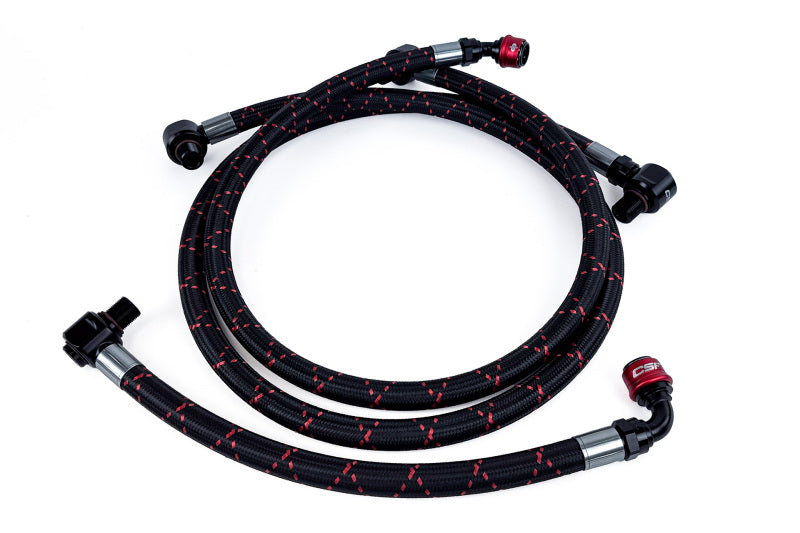

  • Motorsports grade lines: AN lines with DYME quick release fittings, built with a 304 stainless steel reinforcing braid and a polyethylene top braid. The feed and return fittings use a 40-degree design.
  • Welded and pressure tested: bar/plate cores with 100% TIG welded construction, tested to 120 psi.

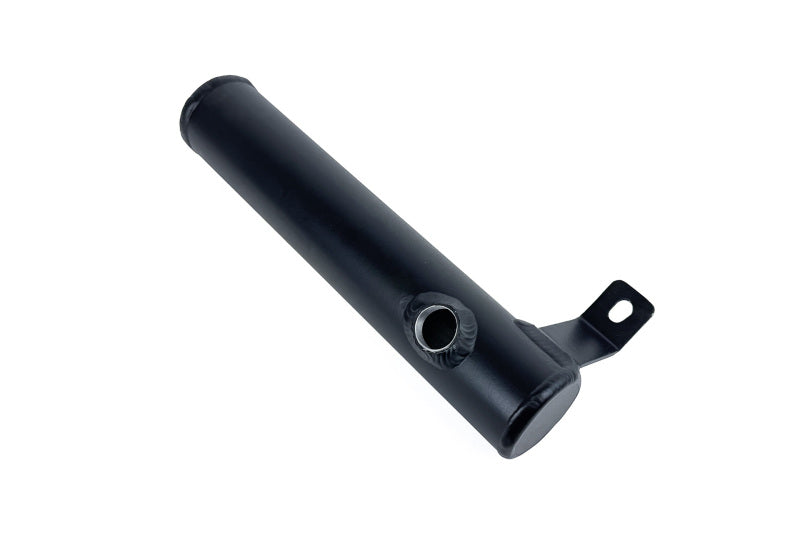

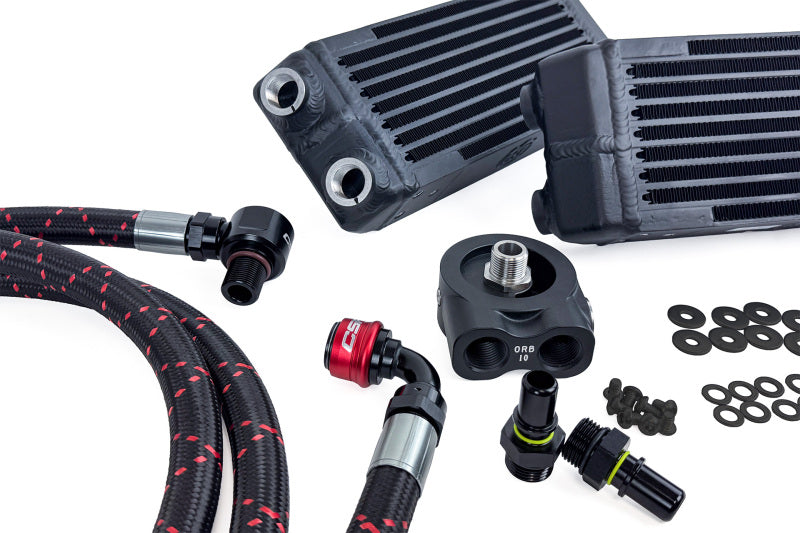

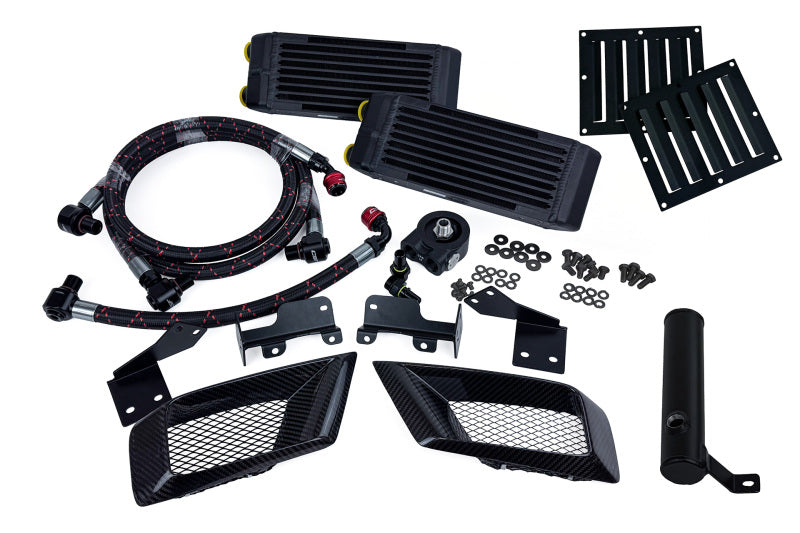

  • Complete kit: includes all brackets and hardware, installation instructions and templates. A replacement washer fluid bottle compatible with the factory washer motor is also included.

Specifications

Brand CSF
Part number 8343
Engine Honda K20
Coolers Two CSF #8119 dual pass oil coolers
Core Bar/plate
Thermostat 175-195°F (80-90°C)
Sensor port 1/8 NPT
Added oil capacity Over 2 quarts (2 liters)
Pressure tested 120 psi
Warranty 2-year limited

Fitment

Fits Honda K20. Confirm your vehicle below, or match by part number 8343 before ordering.

Year Make Model Submodel
2023-2026 Honda Civic Type R
8343
