DeatschWerks B-Series Fuel Rail Kit for Honda Civic del Sol and Acura Integra B16 B18
7-400
$159.00 USD

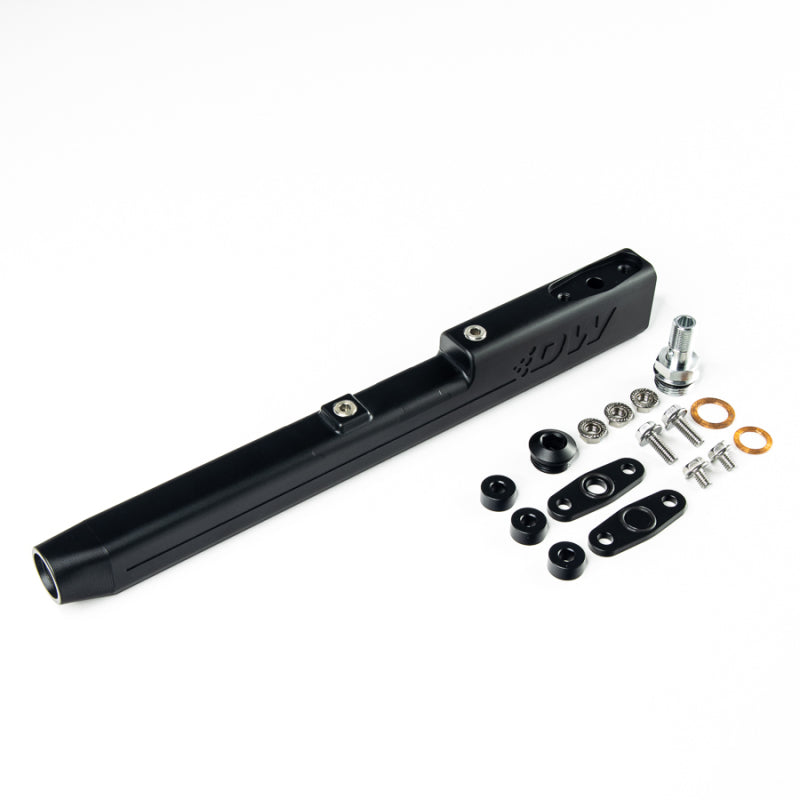

DeatschWerks' Honda B16 and B18 fuel rail kit is a T6 6061 aluminum rail that replaces the factory rail on B-Series Integra and Civic del Sol engines. It keeps the factory fuel line and regulator connections, so you can plumb it without a custom fuel line setup. Part number 7-400 also adds two 1/8 NPT ports for a gauge, sensor or nitrous feed.
Key features
- T6 6061 aluminum, hard anodized: the matte black anodized finish is there for alternative fuel compatibility.
- OEM fuel line and regulator compatible: the kit includes OEM fuel line adapters, OEM pressure regulator adapters and delete plates. It works with return and returnless systems.
- Two 1/8 NPT ports with plugs: use them for a gauge, pressure transducer, sensor or nitrous feed.
- Injector compatibility: takes factory injectors or any injector with an 11 mm upper O-ring and 60 mm height, including DeatschWerks EV14 injectors.
- Integrated mounting brackets: the brackets add rigidity, and stainless steel hardware resists corrosion.
Specifications
| Brand | DeatschWerks |
|---|---|
| Part number | 7-400 |
| Engine | Honda B16, B18 |
| Material | T6 6061 aluminum |
| Finish | Hard anodized, matte black |
| Inlet fitting | -8AN ORB |
| Outlet fitting | -8AN ORB |
| Injector type | 11 mm upper O-ring, 60 mm height |
| Kit contents | Fuel rail, mounting hardware, OEM fuel line adapters, OEM pressure regulator adapters, delete plates |
The spacers in the kit are only needed on some applications, because B-Series intake options vary.
Documents
Fitment
Fits Honda B16 and B18. Confirm your vehicle below, or match by part number 7-400 before ordering.
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1990-1993 | Acura | Integra | GS |
| 1992-2001 | Acura | Integra | GS-R |
| 1990-2001 | Acura | Integra | LS |
| 1990-1998 | Acura | Integra | RS |
| 1994-1997 | Honda | Civic del Sol | VTEC |
