Eagle H-Beam connecting rod for Honda B18C – CRS5430A3D-1

Eagle 4340 H-Beam Connecting Rod (Single Rod) 5.43 in. for Honda B18C

$139.99 USD
Skip to product information
Eagle H-Beam connecting rod for Honda B18C – CRS5430A3D-1

Eagle 4340 H-Beam Connecting Rod (Single Rod) 5.43 in. for Honda B18C

CRS5430A3D-1
$139.99 USD

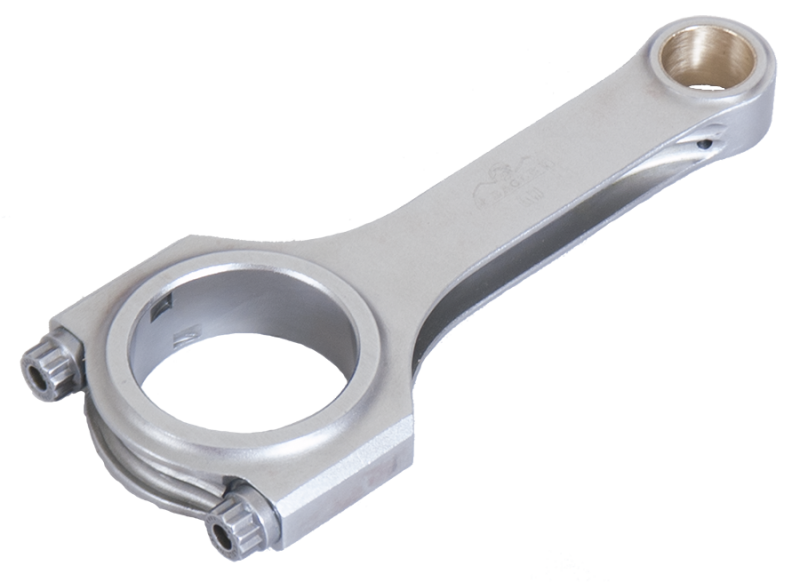

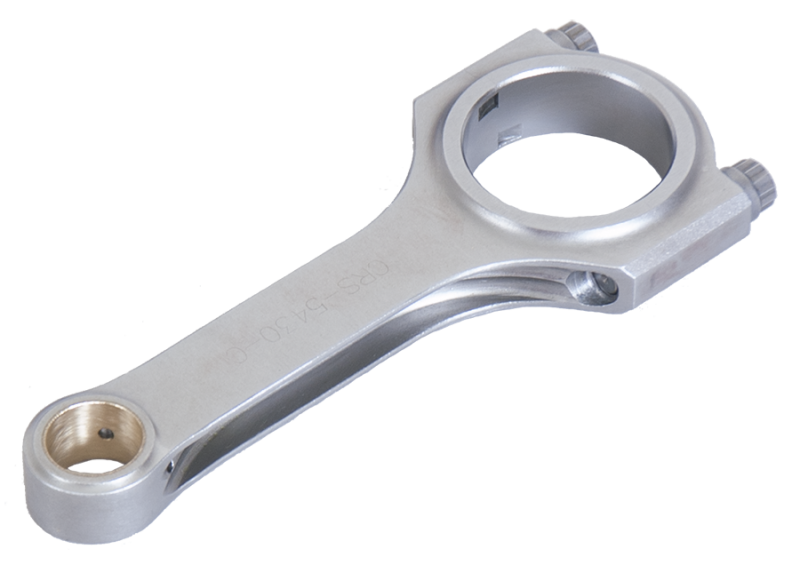

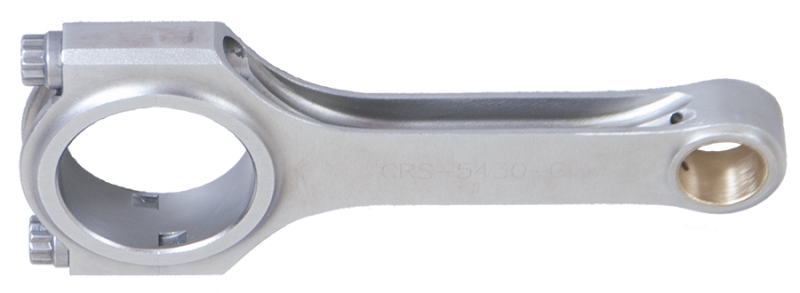

Eagle's H-Beam connecting rod for the Honda B18C is a single forged 4340 steel rod with a 5.43 in. center-to-center length. Order it to replace one damaged rod, or buy four to fill out a set. The manufacturer recommends it for competition use.

Key features

  • Forged 4340 steel H-beam: made from a two-piece forging, so the rod and cap are forged separately.
  • Machined and shot-peened: the surface is fully machined and shot-peened, and sizing is held to tight tolerances.
  • 3/8 in. ARP 2000 bolts: torque to 43 ft-lbs using ARP moly lube only.
  • Bushed for full-floating pins: the pin end is bushed for a full-floating piston pin.
  • Sold individually: one rod per part number, CRS5430A3D-1.

Specifications

Brand Eagle
Part number CRS5430A3D-1
Engine Honda B18
Material Forged 4340 steel
Beam style H-beam
Quantity Single rod
Center-to-center length 5.43 in.
Rod bolts 3/8 in. ARP 2000
Rod journal 1.771 in.
Housing bore 1.89 in.
Big end width 0.858 in.
Pin size 0.827 in.
Pin end width 0.725 in.
Typical weight 535 g
Pin fit Bushed, full floating

Forged rods only go as far as the block holding them. An EPOXY54 kit for the B18 gives the block closed-deck strength without machining, with 21,000 psi compressive strength and a DIY install in 5 steps.

Fitment

Fits Honda B18. Match by part number CRS5430A3D-1 before ordering.
