GSC Power Division dual valve spring set for Honda B16 – 5049

GSC Power Division Dual Spring Set with Titanium Retainers for Honda B16, B18, B20

Sale price  $399.92 USD Regular price  $470.49 USD
Skip to product information
GSC Power Division dual valve spring set for Honda B16 – 5049

GSC Power Division Dual Spring Set with Titanium Retainers for Honda B16, B18, B20

5049
Sale price  $399.92 USD Regular price  $470.49 USD

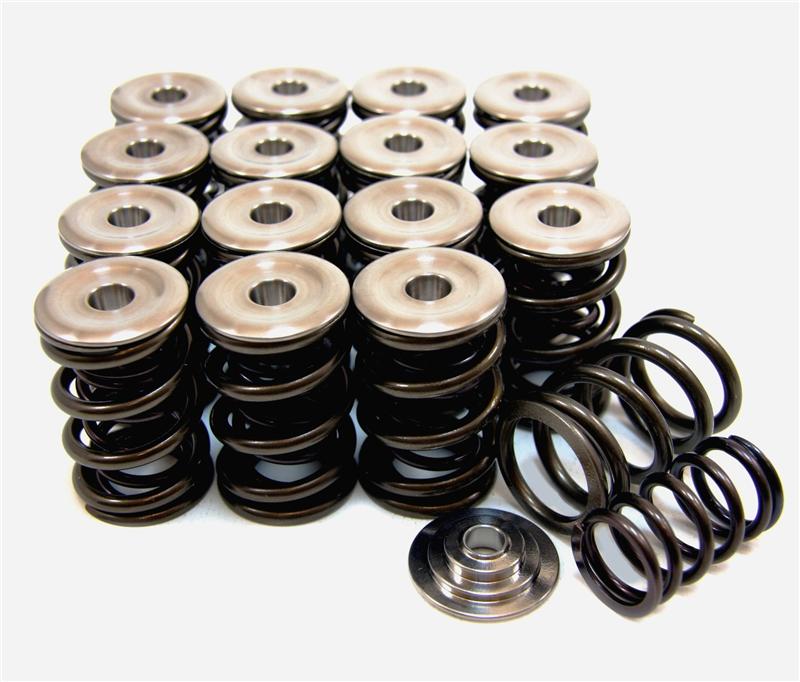

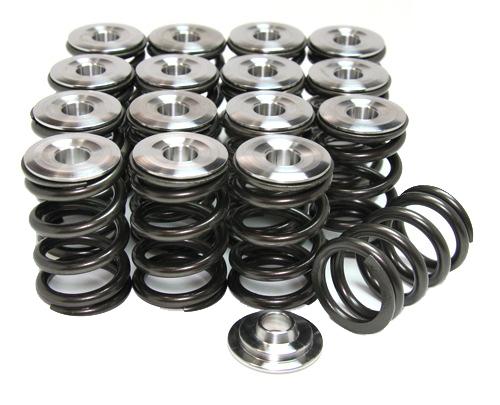

GSC Power Division's dual valve spring set with titanium retainers is built for the Honda B16, B18 and B20 VTEC head. It's a drop-in valvetrain upgrade for Integra, Civic and Civic del Sol builds that need more spring control than the stock springs give. Part number 5049.

Key features

  • Dual cylindrical springs: an outer and inner spring on each valve, with 97 lbs of seat pressure at a 1.342 in outer install height.
  • Titanium retainers: lighter than steel retainers, which reduces the mass the springs have to control.
  • Same wire as GSC's Beehive kits: GSC makes the set from the wire it uses in its Beehive spring kits.
  • Nano-peened finish: a finishing process aimed at keeping fatigue loss low over the life of the spring.
  • Full-engine quantity: the kit includes 16 dual spring sets and 16 titanium retainers.

Specifications

Brand GSC Power Division
Part number 5049
Engine Honda B16, B18, B20
Spring setup Dual cylindrical
Retainer material Titanium
Install height 1.342 in (outer) / 1.186 in (inner)
Seat pressure 97 lbs
Open pressure 259 lbs at 0.870 in (outer) / 0.714 in (inner)
Valve lift limit 0.501 in
Quantity 16 spring sets, 16 retainers

Fitment

Fits Honda B16, B18 and B20. Confirm your vehicle below, or match by part number 5049 before ordering.

Year Make Model Submodel
1992-2001 Acura Integra GS-R
1997-1998,2000-2001 Acura Integra Type R
1999-2000 Honda Civic Si
1994-1997 Honda Civic del Sol VTEC

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or reproductive harm. For more information, go to www.P65Warnings.ca.gov.
