HKS High Comp Step 2 Piston Full Kit 2.5L 90 mm Stroke for Subaru FA24
21004-AT009
$6,380.00 USD

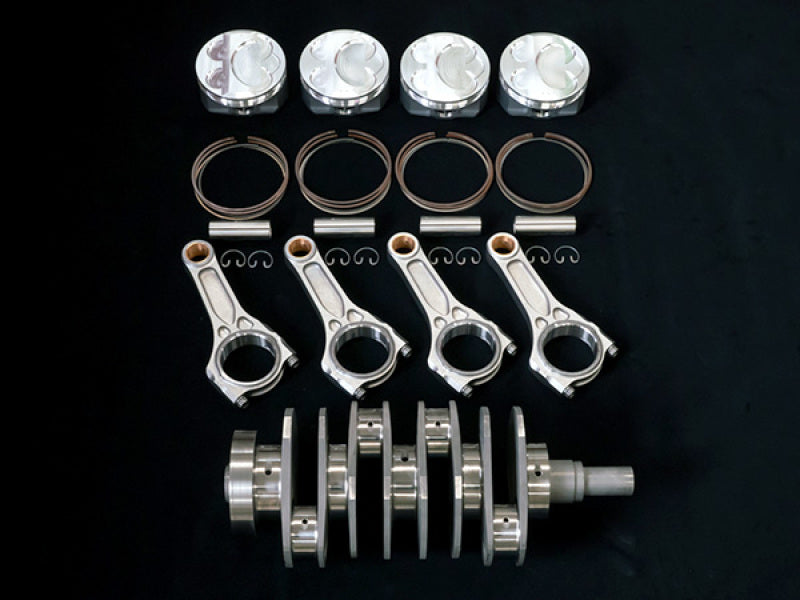

HKS's FA24 2.5L High Comp Step 2 piston full kit takes the Subaru FA24 from 86.0 mm to a 90.0 mm stroke, for 2,498 cc of displacement. It combines a forged piston kit, billet I-beam connecting rods and a forged crankshaft. HKS recommends Step 2 over Step 1 for turbo cars that make high torque.
Key features
- A2618 pistons: the alloy holds strength at high temperature, which protects the second land. The low pin height means no service holes are needed.
- Lighter than stock: each piston weighs 340 g against 367 g stock, and has a 2-layer molybdenum coating to reduce friction.
- Crown designed for direct injection: a cavity in the crown helps fuel atomization, and the 3D crown shape sustains tumble flow. The uneven crown shape allows a high-lift camshaft.
- Billet I-beam rods: HKS quotes about 30% more strength than the Step 1 rod with little added weight. The rods are chrome-moly steel, heat treated and shot peened.
- Dedicated crank pin size: the forged crankshaft and rods use a purpose-made pin journal size, so the stock block needs no clearance modifications. HKS recommends running its rods with this crank.
Specifications
| Brand | HKS |
|---|---|
| Part number | 21004-AT009 |
| Engine | Subaru FA24 |
| Bore | 94 mm |
| Stroke | 90.0 mm |
| Displacement | 2,498 cc |
| Compression ratio | 12.2:1 with stock 0.6 mm head gasket |
| Piston weight | 340 g |
| Beam | Billet I-beam rods |
| Material | A2618 forged pistons, billet chrome-moly rods, forged crankshaft |
With HKS grommet-type head gaskets, HKS lists compression at 11.8:1 with the 0.8 mm gasket and 11.3:1 with the 1.2 mm gasket.
Fitment
Fits Subaru FA24. Match by part number 21004-AT009 before ordering.
