HKS intercooler for K20C – 13001-AH004

HKS R-Type Intercooler for Honda Civic Type R FK8 K20C

$1,050.00 USD
Skip to product information
HKS intercooler for K20C – 13001-AH004

HKS R-Type Intercooler for Honda Civic Type R FK8 K20C

13001-AH004
$1,050.00 USD

HKS's R-Type intercooler gives the Honda K20C in the FK8 Civic Type R a 695 x 178 x 100 mm core, built to hold down intake air temperature under boost. HKS says the stock intercooler runs out of capacity and intake air climbs to nearly 90°C. This unit is for FK8 owners who want to fix that heat problem.

Key features

  • 100 mm wide core: HKS puts the new core at roughly 200% of the stock core capacity.

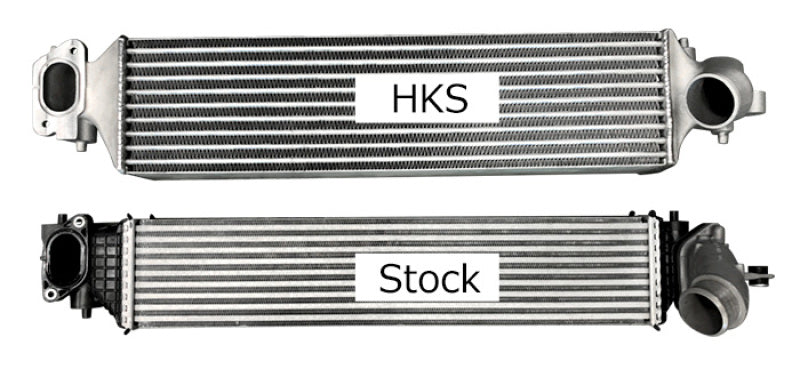

  • Larger core size: 695 x 178 x 100 mm, against the stock 680 x 143 x 64 mm.
  • Built for the FK8 K20C: HKS designed it around the 2.0L turbo engine, which sees boost pressure above 150 kPa.
  • Fitting note: HKS says the fan shroud and the rubber part that touches the core need minor modification.

Specifications

Brand HKS
Part number 13001-AH004
Engine Honda K20
Type R-Type intercooler
Core size 695 x 178 x 100 mm
Stock core size 680 x 143 x 64 mm

Fitment

Fits Honda K20. Match by part number 13001-AH004 before ordering.

13001-AH004
