HKS stroker kit for FA20 – 21004-AT002

HKS 2.1L Capacity Upgrade Stroker Kit, 86 mm Bore, 90 mm Stroke for Subaru FA20

$4,180.00 USD
Skip to product information
HKS stroker kit for FA20 – 21004-AT002

HKS 2.1L Capacity Upgrade Stroker Kit, 86 mm Bore, 90 mm Stroke for Subaru FA20

21004-AT002
$4,180.00 USD

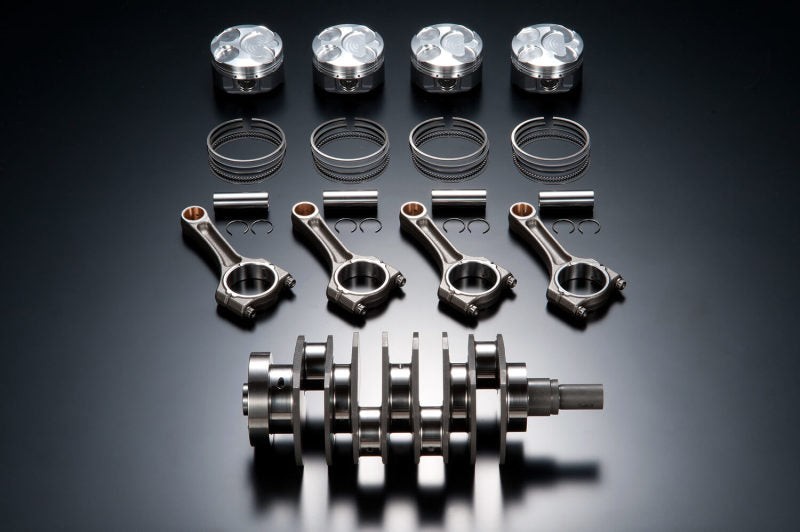

HKS's 2.1L stroker kit takes the Subaru FA20 from 1998.2 cc to 2091.2 cc. It pairs a 90 mm forged crankshaft with forged pistons and I-beam connecting rods, all on the stock 86 mm bore. It's for builders who want to replace the engine internals in one step. HKS lists it under part number 21004-AT002.

Key features

  • Short-height forged pistons: the crowns are shaped for the stock direct injection system. The short height also fixes the stock pistons' skirt overhang at the bottom of the stroke.
  • Compression set by head gasket: measured compression is 12.4 with a 0.5 mm gasket and 11.8 with a 1.0 mm gasket. HKS says changing the gasket lets both naturally aspirated and turbocharged engines use the kit.
  • Rods made for the longer stroke: split I-beam rods with M8 bolts and a 51 mm big end. The crank pin is a special size, so new bearings are required. HKS says the crank bearings (Nissan RB26 and SR) must be bought separately.
  • No block machining: the stock bore stays, so HKS says there is no need for liners, boring and honing, or block facing.

Specifications

Brand HKS
Part number 21004-AT002
Engine Subaru FA20
Bore 86 mm
Stroke 90 mm
Compression ratio 12.4:1 (measured, 0.5 mm head gasket)
Material Forged pistons and forged crankshaft, split I-beam rods
Displacement 2091.2 cc
Crank main journal diameter 68 mm
Crank pin journal diameter 48 mm
Made in Japan

Fitment

Fits Subaru FA20. Match by part number 21004-AT002 before ordering.

21004-AT002
