HKS Cold Air Intake Full Kit for Subaru BRZ ZD8 FA24 (Toyota GR86 ZN8)
70026-AT012
$1,705.00 USD

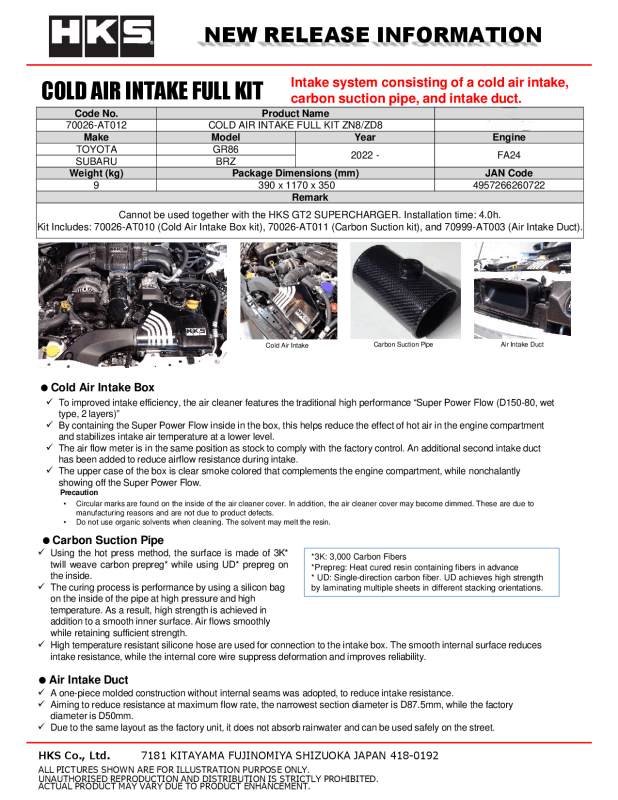

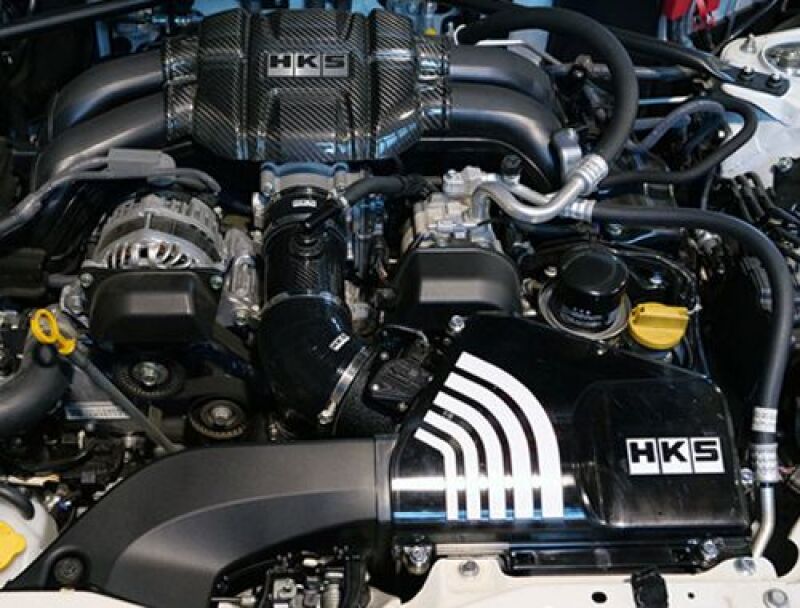

HKS's cold air intake full kit for the Subaru FA24 replaces the factory intake path on the ZD8 BRZ (and the ZN8 GR86) with a boxed filter, a carbon suction pipe and a larger intake duct. It's a complete three-part kit, part number 70026-AT012, for builders who want a bolt-on intake that keeps the airflow meter in its stock position.
Key features
- Boxed Super Power Flow filter: a wet-type, two-layer D150-80 element sits inside the box, which helps limit the effect of engine-bay heat and keeps intake air temperature lower and steadier.
- Stock airflow meter position: the meter stays where the factory put it to suit factory control. A second intake duct is added to cut airflow resistance.
- Carbon suction pipe: hot-press formed from 3K twill weave carbon prepreg over UD prepreg, cured under pressure with a silicone bag for a smooth inner surface. A reinforced silicone hose connects it to the intake box.
- One-piece intake duct: molded without internal seams to reduce intake resistance. Its narrowest section is 87.5 mm against the factory 50 mm.
- Factory layout: the duct follows the stock routing, so it doesn't draw in rainwater.
Specifications
| Brand | HKS |
|---|---|
| Part number | 70026-AT012 |
| Engine | Subaru FA24 |
| Media | Super Power Flow D150-80, wet type, 2 layers |
| Material | 3K twill weave carbon prepreg (suction pipe) |
| Narrowest duct diameter | 87.5 mm (factory 50 mm) |
| Kit contents | 70026-AT010 cold air intake box kit, 70026-AT011 carbon suction kit, 70999-AT003 air intake duct |
| Installation time | 4.0 h (HKS figure) |
| Compatibility note | Can't be used with the HKS GT2 Supercharger |
Documents
Fitment
Fits Subaru FA24. Match by part number 70026-AT012 before ordering.
