Mahle Motorsport Piston Pin 0.866 in (22 mm) x 2.405 in, 118 g, Round Wire Lock Chamfer
6458160
$19.82 USD

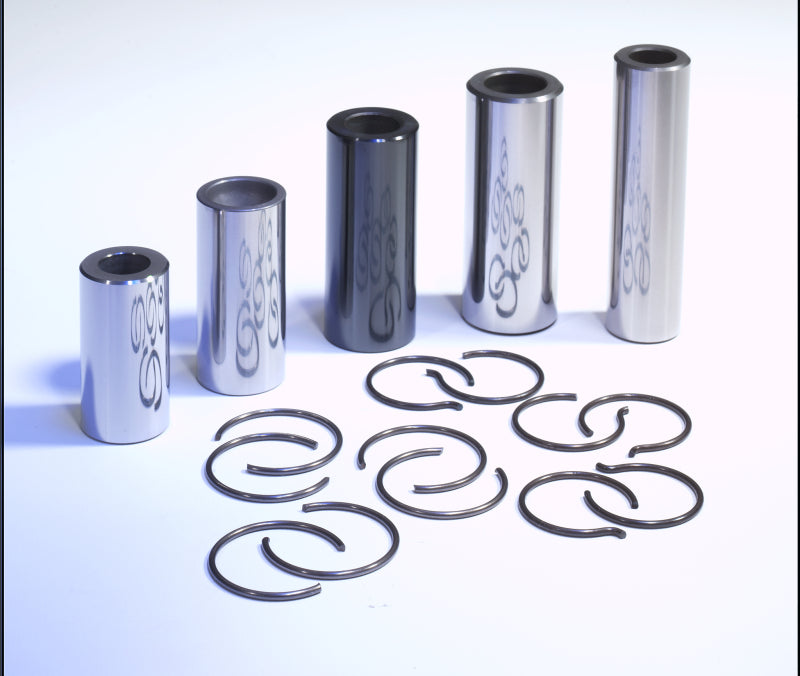

Mahle's Motorsport piston pin is a 0.866 in (22.0 mm) pin, 2.405 in long, with a listed weight of 118 g. The 1.0 mm x 45 degree chamfer at the pin ends is cut for round wire locks, so it suits floating-pin piston and rod combinations that use wire lock retention. Confirm the pin diameter and length against your piston and rod set before ordering.
Key features
- Wire lock chamfer: a 1.0 mm x 45 degree chamfer for round wire locks.
Specifications
| Brand | Mahle |
|---|---|
| Part number | 6458160 |
| Wrist pin | 0.866 in (22.0 mm) diameter |
| Overall length | 2.405 in |
| Pin weight | 118 g |
| Chamfer | 1.0 mm x 45 degrees, for round wire locks |
Fitment
Universal fit. Check the specifications above against your application.
