Manley forged piston for Subaru FA20 – 632600CB-1

Manley Platinum Series Single Forged Piston 86 mm 10:1 Dish for Subaru BRZ FA20

632600CB-1
Sale price  $187.08 USD Regular price  $203.35 USD

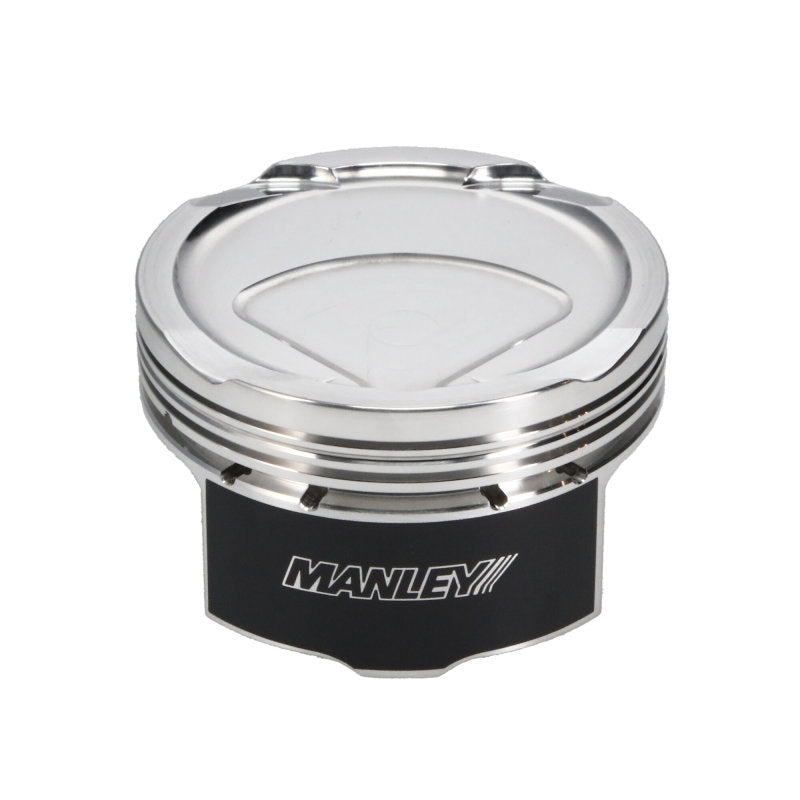

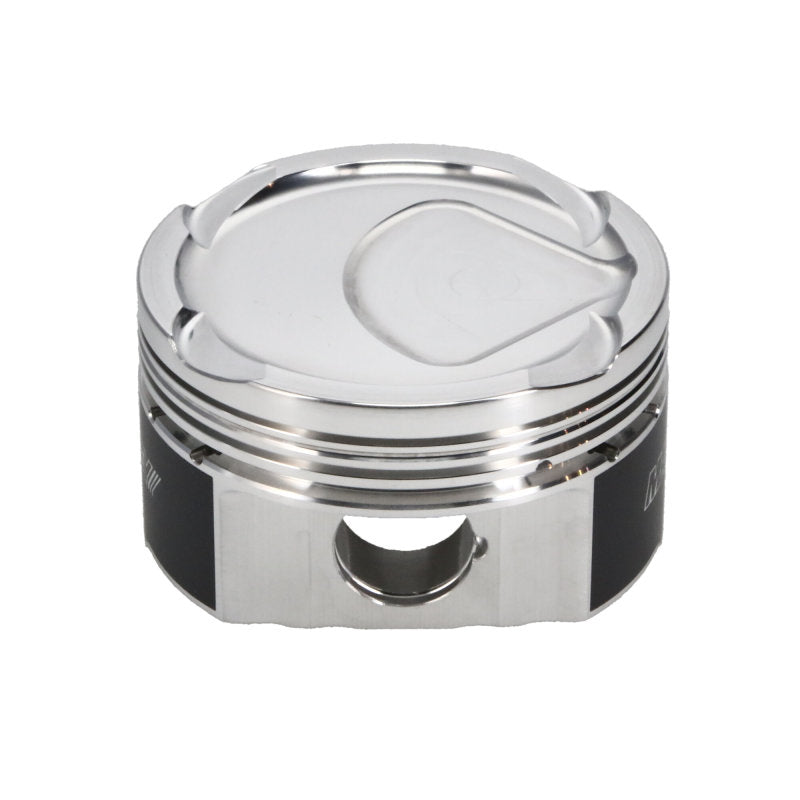

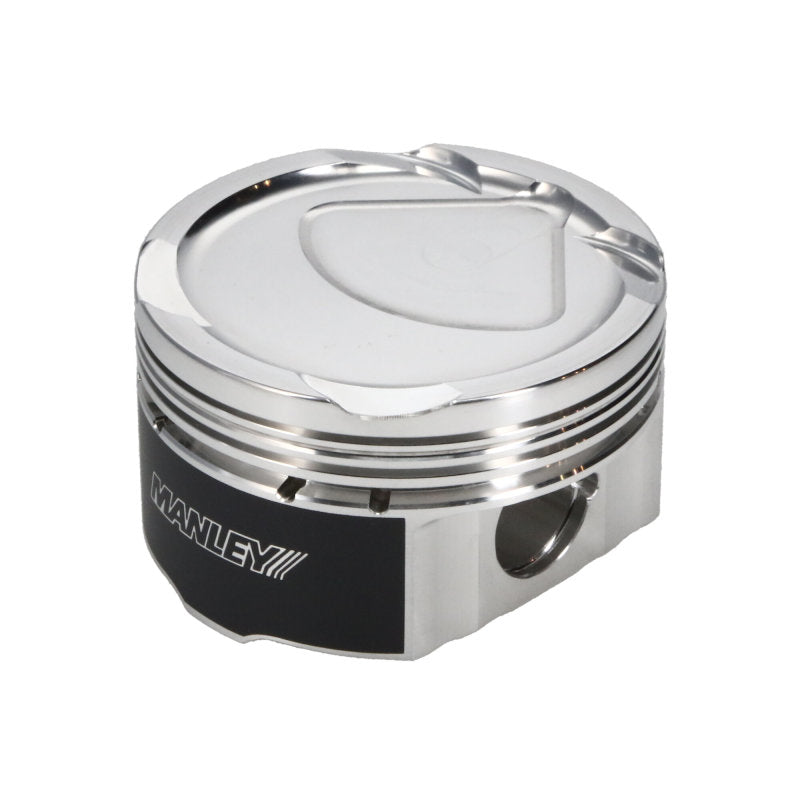

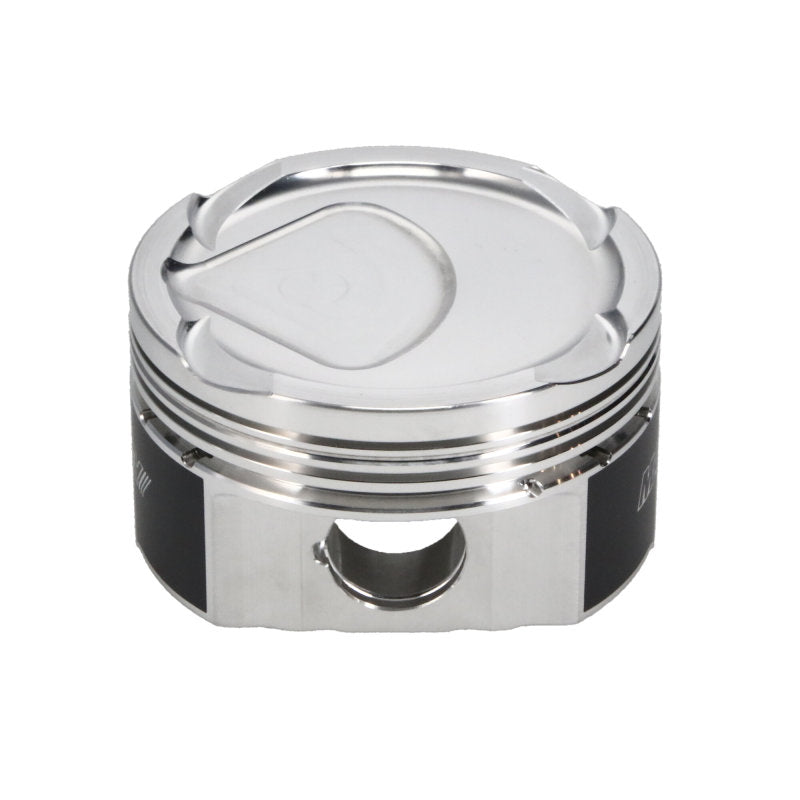

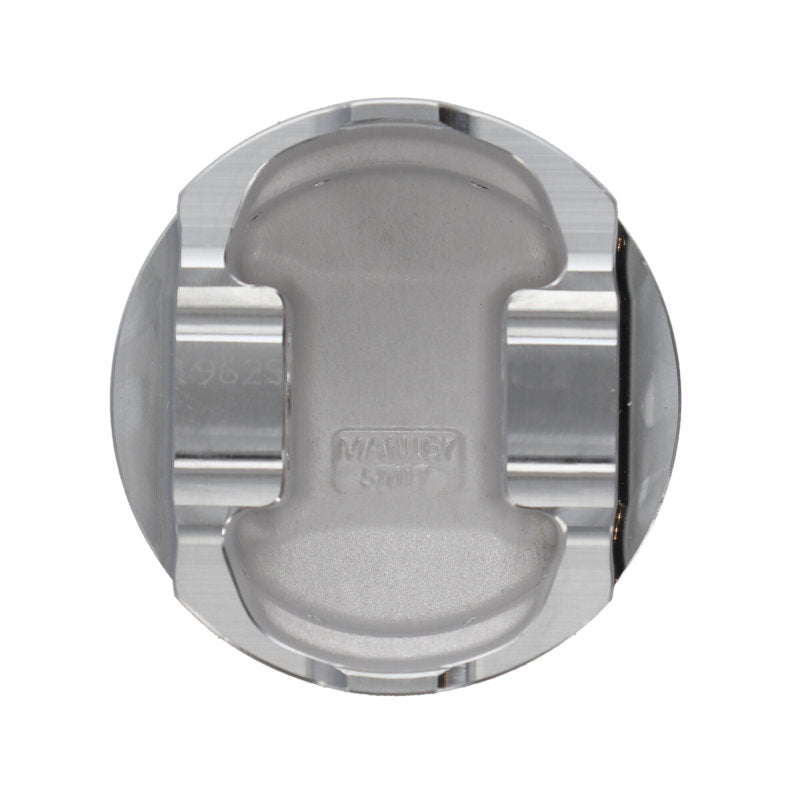

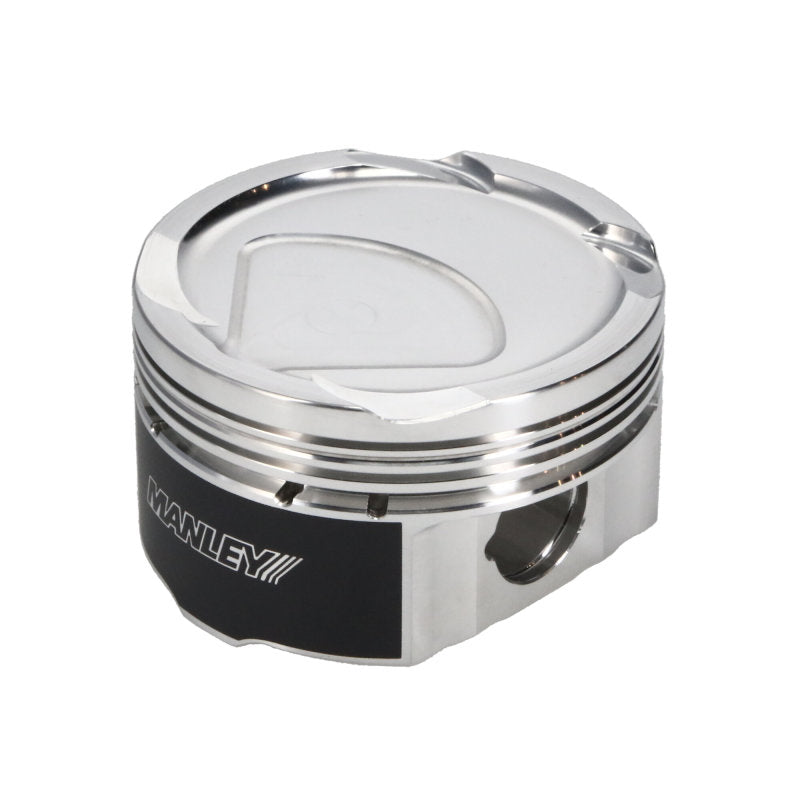

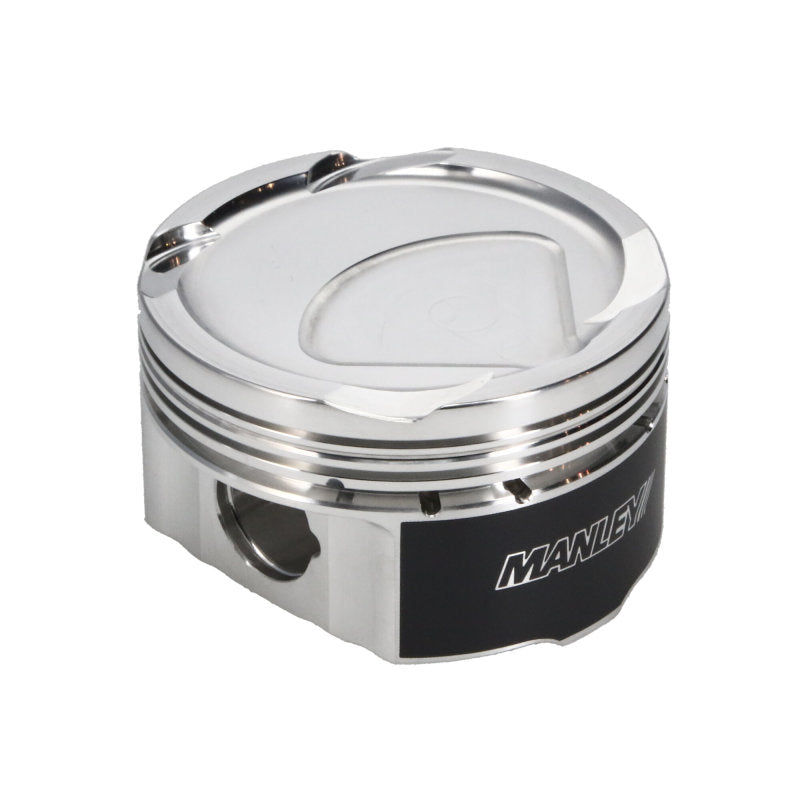

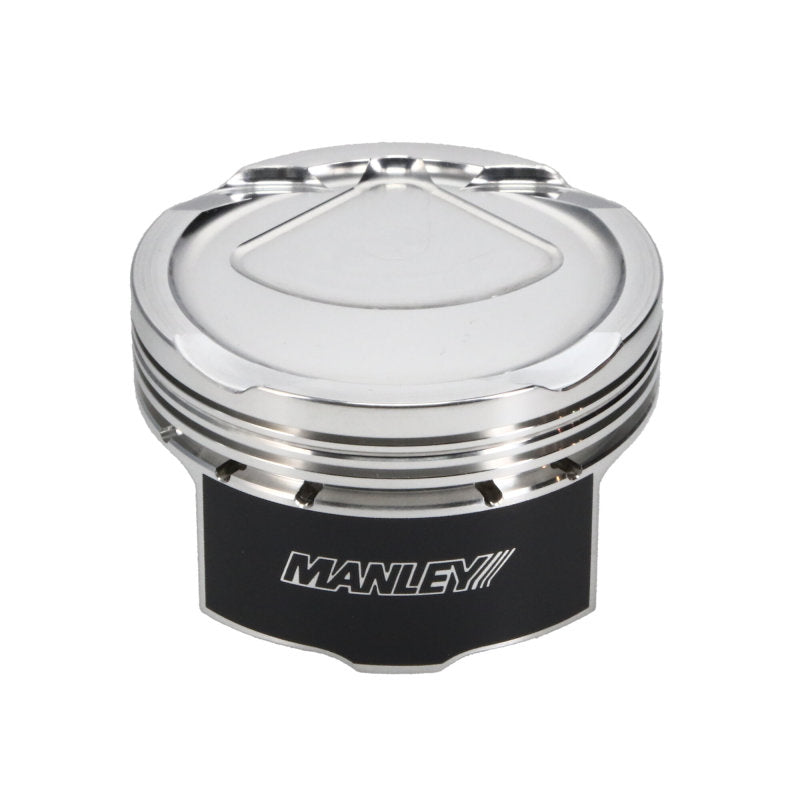

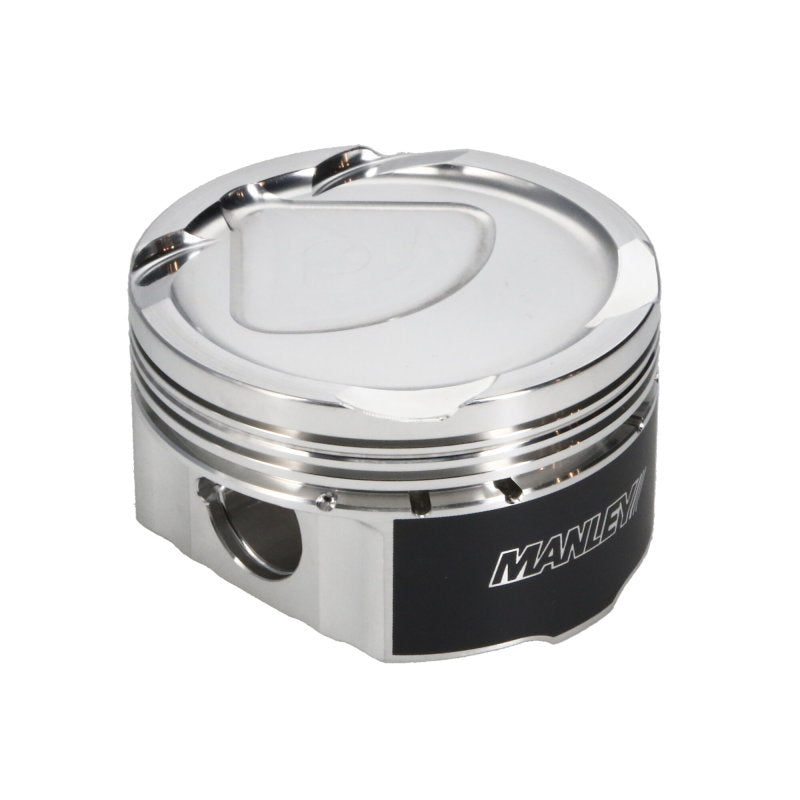

Manley's Platinum Series forged piston for the Subaru FA20 is a single 86 mm standard-bore (Grade B) piston with a 10:1 compression ratio and a dished crown. It's sold one piston at a time, so you can fill out a set or replace a single piston in an FA20 rebuild.

Key features

  • 2618 alloy forging: Manley machines the piston from domestic 2618 alloy forgings for strength under racing loads.

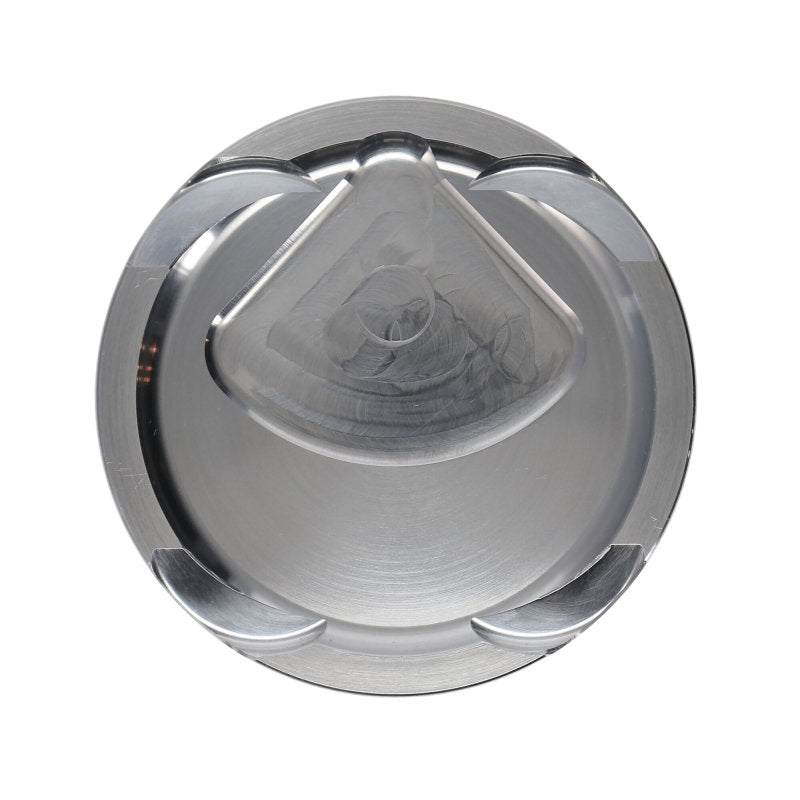

  • Dish crown, -11.40 cc: the dish sets the 10:1 compression ratio in the stock-bore FA20.
  • Cam and barrel skirt profile: the skirt shape is meant to support power while staying gentle on the cylinder walls.
  • Ring land and groove control: Manley turns the skirt and machines the ring grooves in a single operation. That keeps the grooves square to the skirt, which helps ring seal.

Specifications

Brand Manley Performance
Part number 632600CB-1
Engine Subaru FA20
Bore 86.00 mm
Oversize Standard (Grade B)
Compression ratio 10:1
Compression height 1.285 in
Piston volume -11.40cc dish
Crown Dish
Material 2618 aluminum, forged (Platinum Series)
Quantity 1 (single piston)

Forged pistons only go as far as the block holding them. An EPOXY54 kit for the FA20 gives the block closed-deck strength without machining, with 21,000 psi compressive strength and a DIY install in 5 steps.

Fitment

Fits Subaru FA20. Match by part number 632600CB-1 before ordering.
