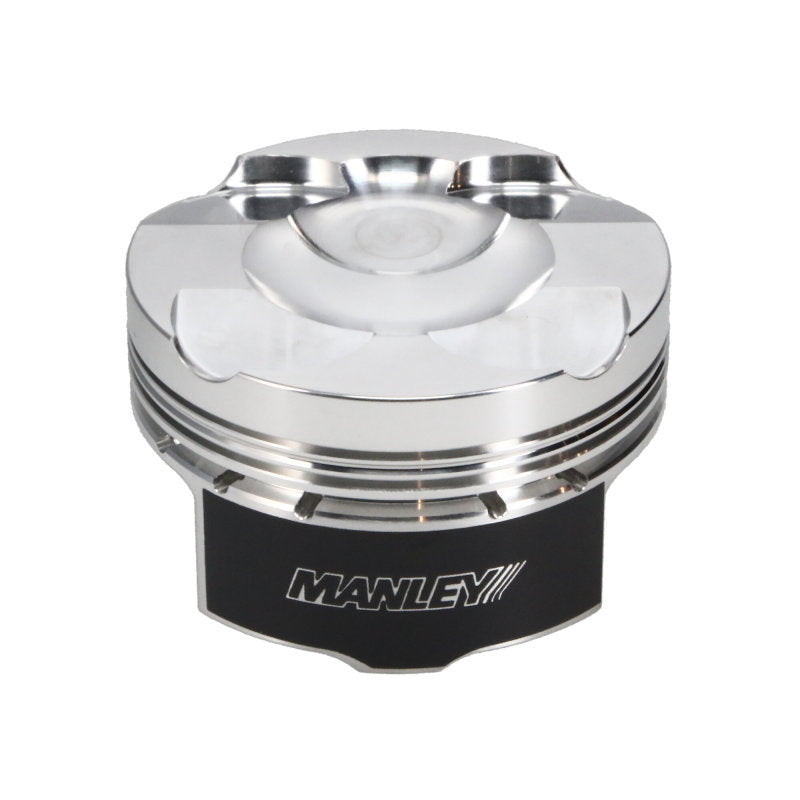

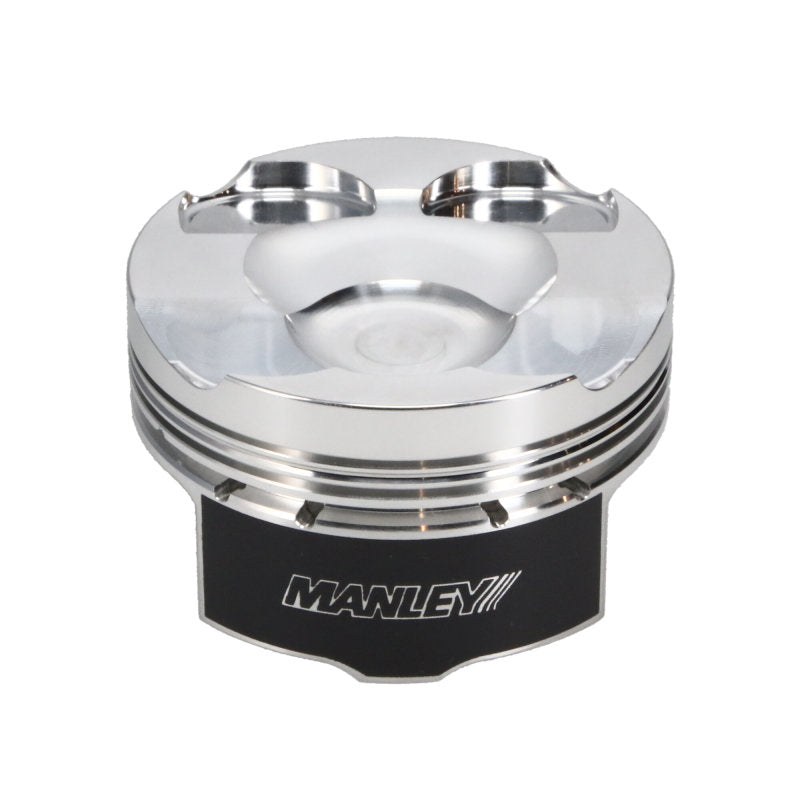

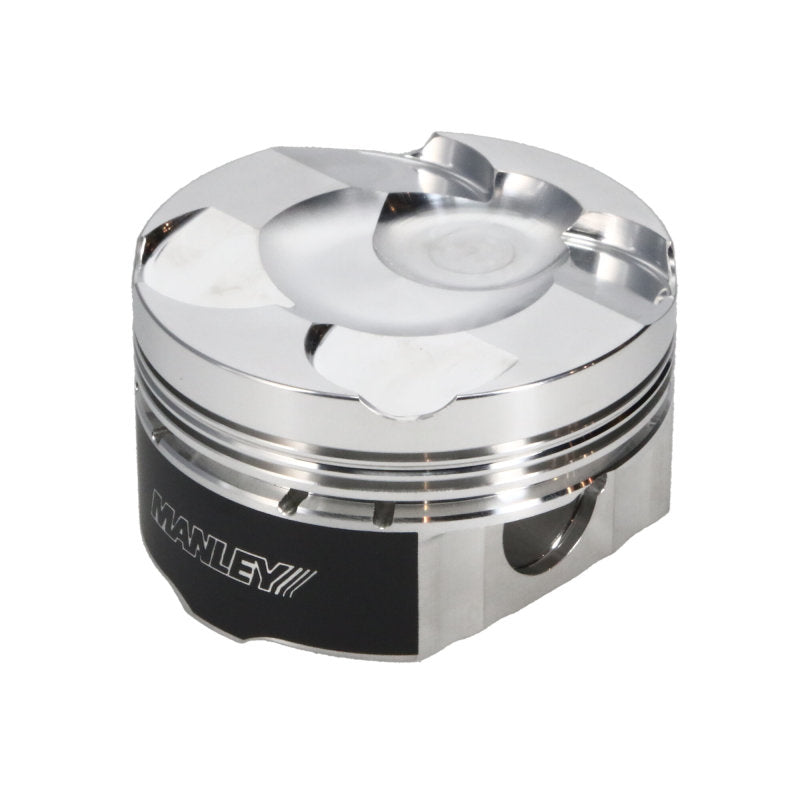

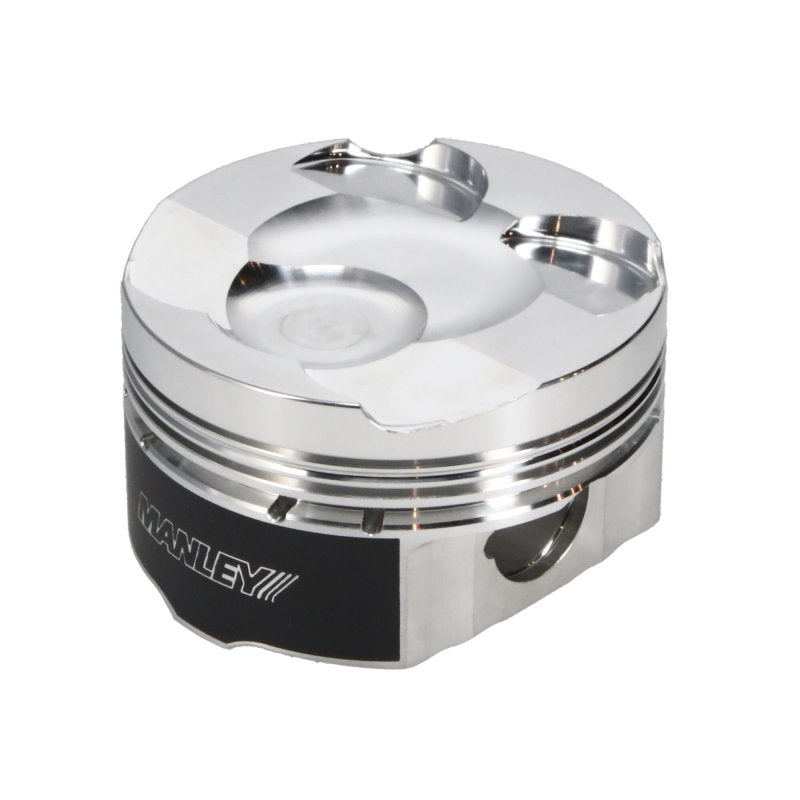

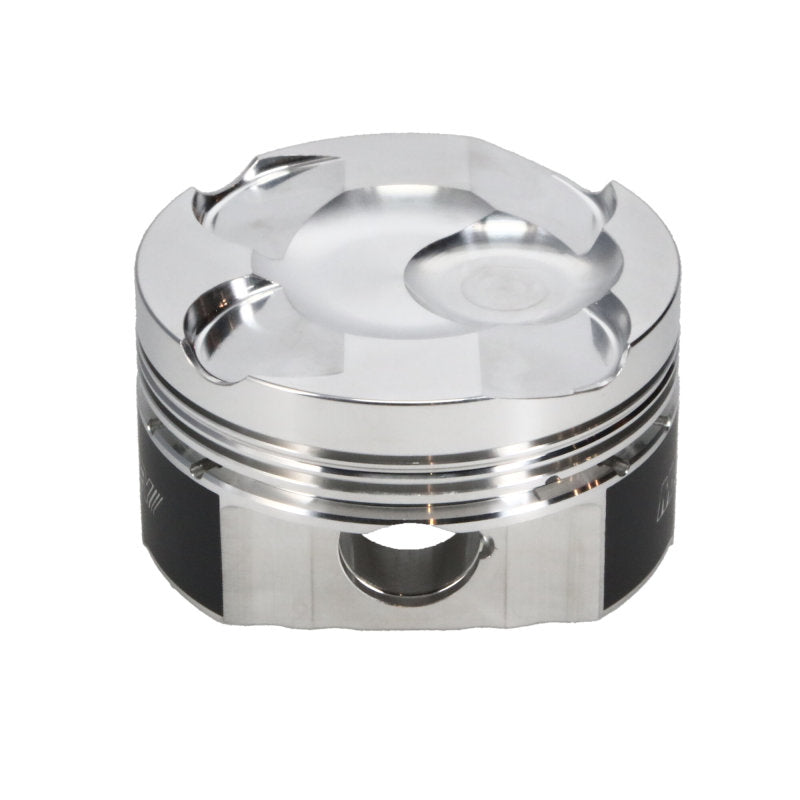

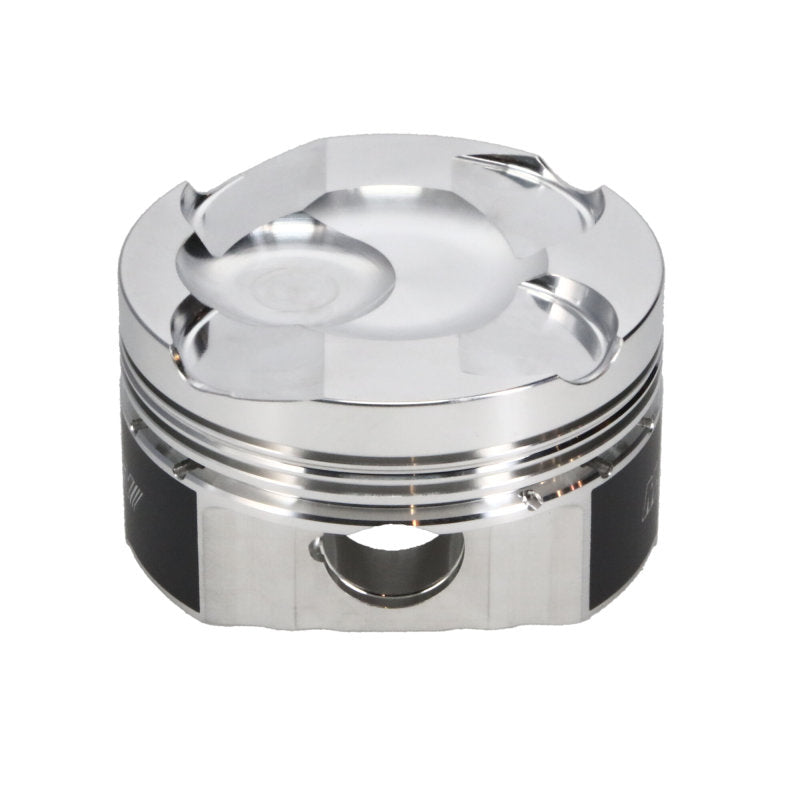

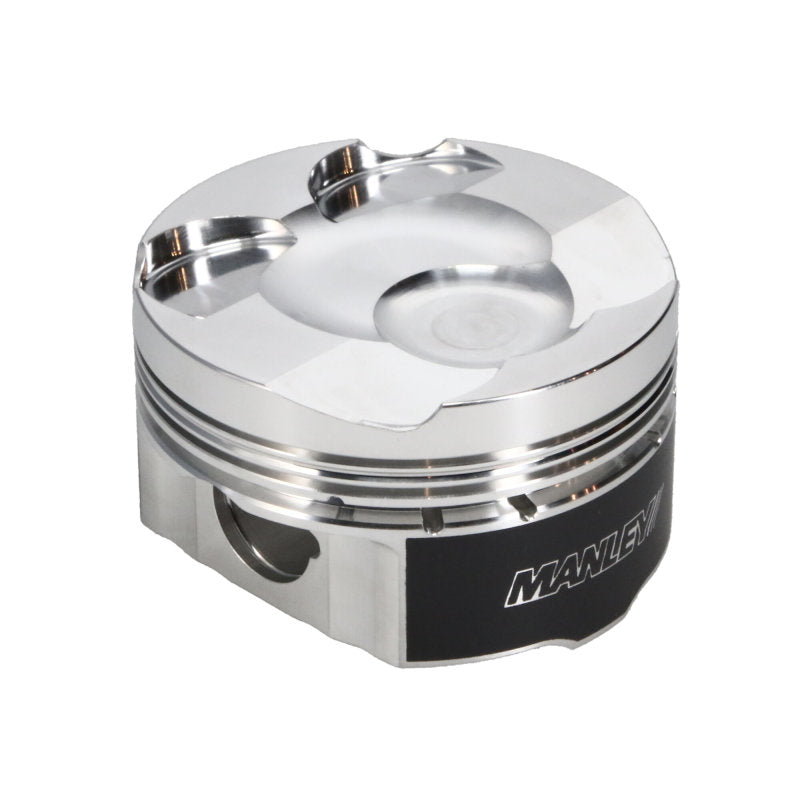

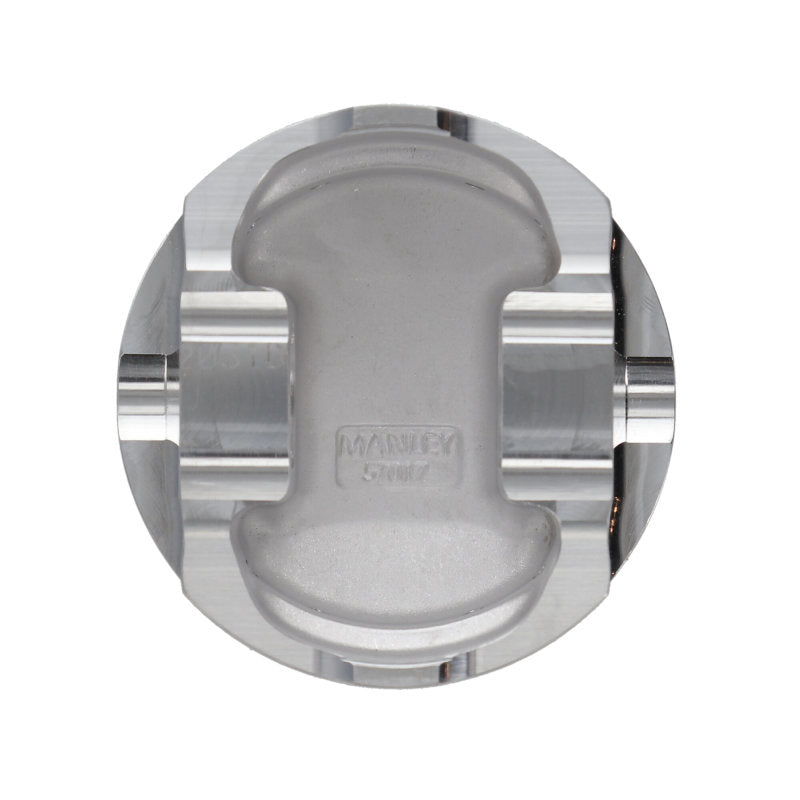

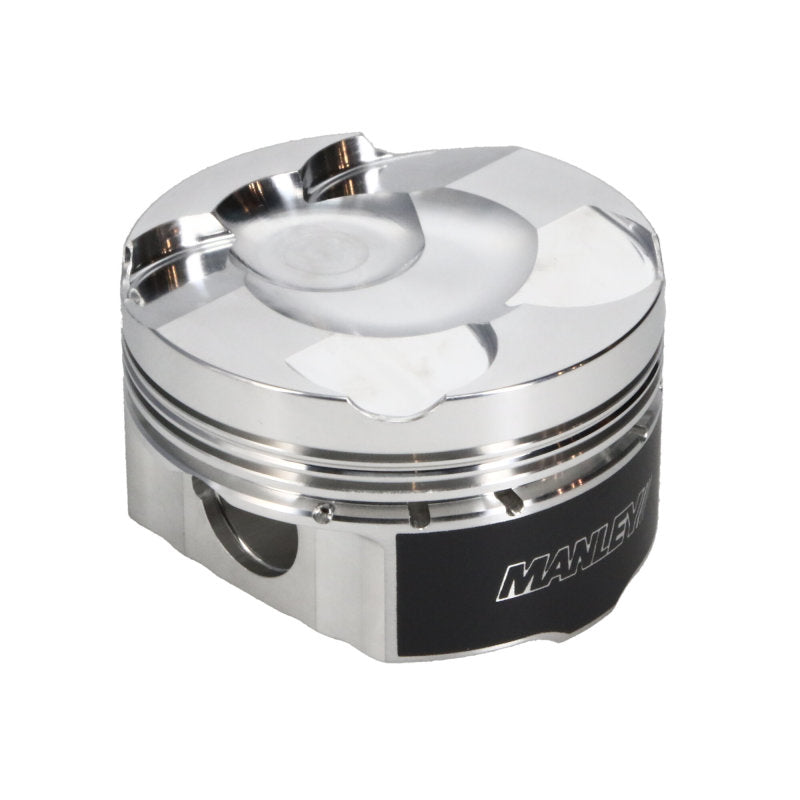

Manley Platinum Series Forged Piston 86mm STD Grade B 10:1 Dish for Subaru WRX FA20
Manley's Platinum Series forged piston is a single 86 mm standard-bore (Grade B) dish piston for the Subaru FA20, with a 10:1 compression ratio. It suits FA20 WRX rebuilds that need a forged replacement at stock bore size. Order one per cylinder, and match the Grade B bore to your block. Manley lists a Grade A version under a different part number.
Key features
- 2618 aluminum forging: Manley machines these from domestic 2618 alloy forgings for strength under load.

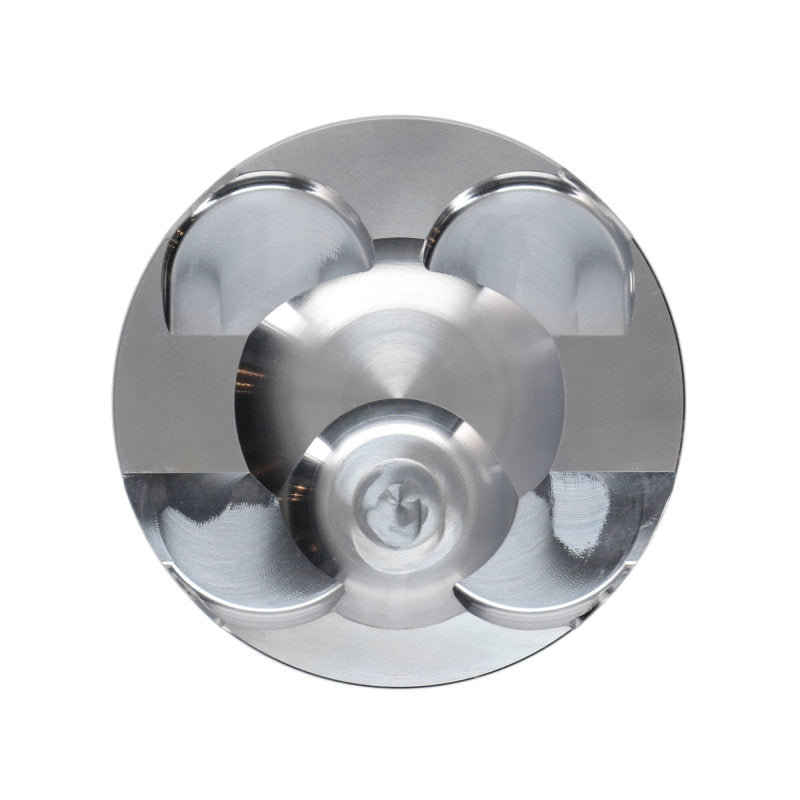

- Dish crown, 10:1 compression: the dished crown sets the 10:1 ratio for the FA20.
- Cam and barrel skirt profile: Manley designs the skirt to be gentle on cylinder walls.
- Machined ring lands and grooves: skirt turning and ring groove machining happen in one fixturing, for ring groove to skirt squareness and better ring seal.
- Sold as a single piston: buy one for each cylinder you are replacing. Part 632700CB-1.
Specifications
| Brand | Manley Performance |
|---|---|
| Part number | 632700CB-1 |
| Engine | Subaru FA20 |
| Bore | 86.0 mm (Grade B) |
| Oversize | Standard |
| Compression ratio | 10:1 |
| Compression height | 1.285 in |
| Crown | Dish |
| Material | 2618 aluminum, forged |
| Quantity | 1 (single piston) |
Forged pistons only go as far as the block holding them. An EPOXY54 kit for the FA20 gives the block closed-deck strength without machining, and it installs in 5 steps.
Fitment
Fits Subaru FA20. Match by part number 632700CB-1 before ordering.
