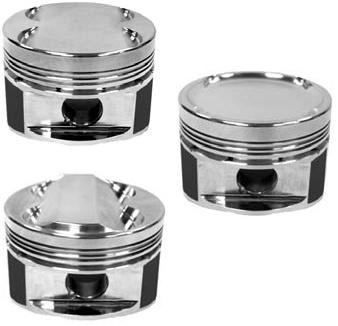

Manley Platinum Series piston set for Honda B20 – 602100-4

Manley Platinum Series Dome Piston Set 84 mm 12.5:1 for Honda CR-V B20 B16 (1997–2000)

Sale price  $677.77 USD Regular price  $736.71 USD
Skip to product information
Manley Platinum Series piston set for Honda B20 – 602100-4

Manley Platinum Series Dome Piston Set 84 mm 12.5:1 for Honda CR-V B20 B16 (1997–2000)

602100-4
Sale price  $677.77 USD Regular price  $736.71 USD

Manley Performance's Platinum Series forged piston set for the Honda B20B4 block with a B16A1, B16A2 or B16A3 head has an 84 mm standard bore and a 12.5:1 compression ratio. It suits the 1997–2000 CR-V B20 swap build, where the dome pistons raise compression over the stock B20B4 setup. Part number 602100-4 ships as a complete set with rings.

Key features

  • 2618 alloy forgings: Manley machines the Platinum Series from domestic 2618 forgings for strength under load.
  • 4.8 cc dome: the dome sets the 12.5:1 compression ratio for this block and head combination.
  • Cam and barrel skirt profiles: the profile is meant to make power while staying gentle on the cylinder walls.
  • Single-operation machining: skirt turning and ring groove machining happen in one fixture setup, which holds the ring grooves square to the skirt.
  • Rings included: the set comes with rings, so the bore size and ring package are matched from the start.

Specifications

Brand Manley Performance
Part number 602100-4
Engine Honda B16, B20
Series Platinum Series
Material 2618 alloy forging
Bore 84.00 mm (standard)
Compression ratio 12.5:1
Piston type Dome, 4.8 cc
Compression height 1.181 in
Quantity 4 pistons, with rings

Forged pistons only go as far as the block holding them. An EPOXY54 kit for the B16 gives the block closed-deck strength without machining, and the install is a DIY job in 5 steps.

Fitment

Fits Honda B16 and B20. Confirm your vehicle below, or match by part number 602100-4 before ordering.

Year Make Model Submodel
1997-2001 Acura Integra GS
1994-2001 Acura Integra GS-R
1994-2001 Acura Integra LS
1994-1998 Acura Integra RS
1995-1996 Acura Integra Special Edition
1997-1998,2000-2001 Acura Integra Type R
1992-2000 Honda Civic CX
1992-2000 Honda Civic DX
1992-2000 Honda Civic EX
1998-2000 Honda Civic GX
1996-2000 Honda Civic HX
1992-2000 Honda Civic LX
1992-1995,1999-2000 Honda Civic Si
1999 Honda Civic Value Package
1992-1995 Honda Civic VX
1993-1997 Honda Civic del Sol S
1993-1997 Honda Civic del Sol Si
1994-1997 Honda Civic del Sol VTEC
1989-1991 Honda CRX Base
1988 Honda CRX DX
1990-1991 Honda CRX HF
1988-1991 Honda CRX Si
1997-2001 Honda Prelude Base
1992-1996 Honda Prelude S
1995 Honda Prelude SE
1992-1996 Honda Prelude Si
1992 Honda Prelude Si 4WS
1997-2001 Honda Prelude Type SH
1993-1996 Honda Prelude VTEC
