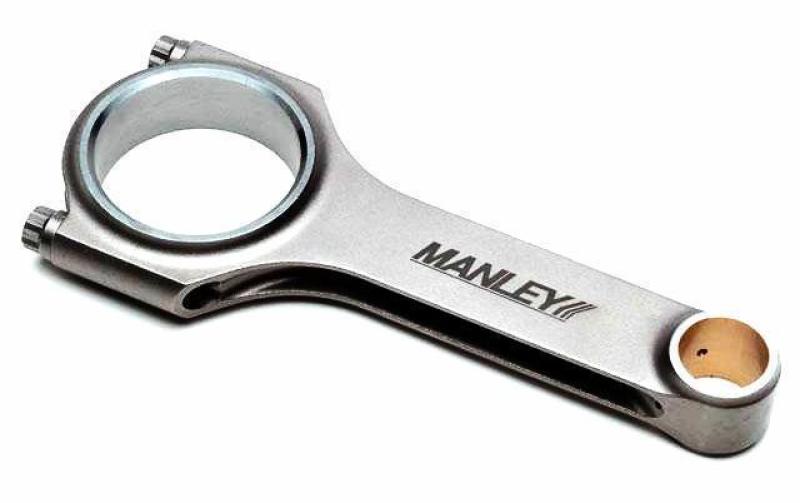

Manley H-Tuff Plus H-Beam Connecting Rod (Single) for Subaru WRX STi EJ20 EJ25
Manley's H-Tuff Plus H-beam connecting rod for the Subaru EJ20 and EJ25 is a single rod with a 5.137 in center-to-center length and a 23 mm wrist pin. The length is stock, so it suits WRX EJ205 and STi EJ257 rebuilds. It is sold one rod at a time, which lets you replace a single rod or build up a full set.
Specifications
| Brand | Manley Performance |
|---|---|
| Part number | 15024R6-1 |
| Engine | Subaru EJ20, EJ25 |
| Beam | H-beam |
| Rod length | 5.137 in (center to center) |
| Quantity | 1 (single rod) |
| Big end bore | 2.165 in |
| Pin end bore | 0.9063 in |
| Wrist pin | 0.9055 in (23 mm) |
| Average weight | 575 g |
Rebuilding the short block? An EPOXY54 kit for the EJ20 gives the block closed-deck strength without machining, and it installs in 5 steps you can do yourself.
Fitment
Fits Subaru EJ20 and EJ25. Match by part number 15024R6-1 before ordering.
