McLeod Racing Mag Force SE Single Disc Clutch Kit for Honda Civic Integra B16 B18 B20
653521-27M
$1,495.00 USD

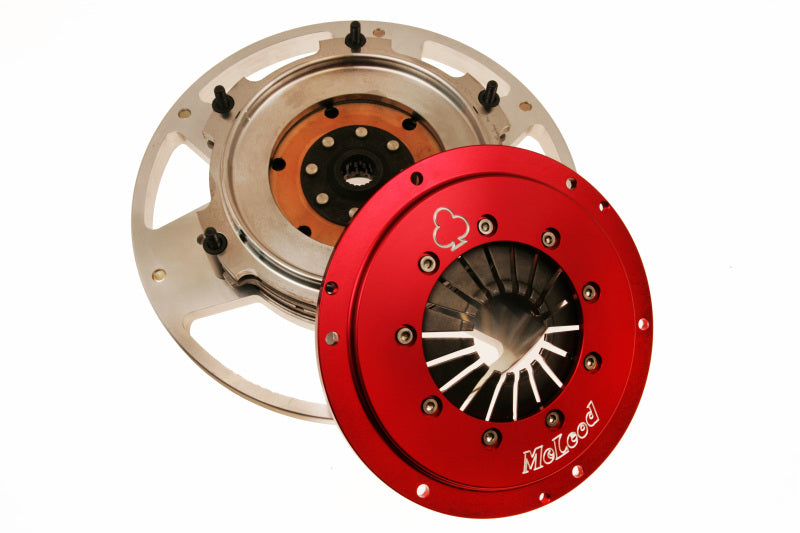

McLeod Racing's Mag Force SE single disc clutch kit for the Honda B16, B18 and B20 is the street version of the Mag Force racing clutch. It pairs a Miba-lined ceramic disc with a strapped floater and a billet aluminum cover, so it suits a B-series car that sees street driving as well as road racing, drag racing and salt flats time trials. Part number 653521-27M.
Key features
- Ceramic disc: McLeod builds the SE with a ceramic disc for street use.
- Strap drive: a spring steel strap bolts the floater plate to the flywheel, which keeps the clutch quiet on release.
- Billet aluminum cover: keeps the 8 inch unit light.
- Bolt-on balance weights: McLeod offers external balance weights for most Mag Force applications.
- Break-in required: McLeod calls for 500 to 750 miles of street, stop-and-go driving before wide open throttle, so the disc seats against the pressure plate and flywheel.
Specifications
| Brand | McLeod Racing |
|---|---|
| Part number | 653521-27M |
| Engine | Honda B16, B18, B20 |
| Series | Mag Force SE |
| Configuration | Single disc, strap drive |
| Diameter | 8 in |
| Disc | Ceramic |
| Cover | Billet aluminum |
| Application | 1992–2001 Honda B-Series |
| Size listed by McLeod | 1-1/32 x 24 |
Documents
Fitment
Fits Honda B16, B18 and B20. Confirm your vehicle below, or match by part number 653521-27M before ordering.
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1997-2001 | Acura | Integra | GS |
| 1994-2001 | Acura | Integra | GS-R |
| 1994-2001 | Acura | Integra | LS |
| 1994-1998 | Acura | Integra | RS |
| 1995-1996 | Acura | Integra | Special Edition |
| 1997-1998,2000-2001 | Acura | Integra | Type R |
| 1996-2000 | Honda | Civic | CX |
| 1996-2000 | Honda | Civic | DX |
| 1992-2000 | Honda | Civic | EX |
| 1996-2000 | Honda | Civic | HX |
| 1996-2000 | Honda | Civic | LX |
| 1992-1995,1999-2000 | Honda | Civic | Si |
| 1996-1997 | Honda | Civic del Sol | S |
| 1993-1997 | Honda | Civic del Sol | Si |
| 1994-1997 | Honda | Civic del Sol | VTEC |
| 1998-2001 | Honda | CR-V | EX |
| 1998-2001 | Honda | CR-V | LX |
| 2000-2001 | Honda | S2000 | Base |
