NGK Direct Fit Oxygen Sensor for Honda Accord and Prelude B16, B18, B20
24169
$135.33 USD

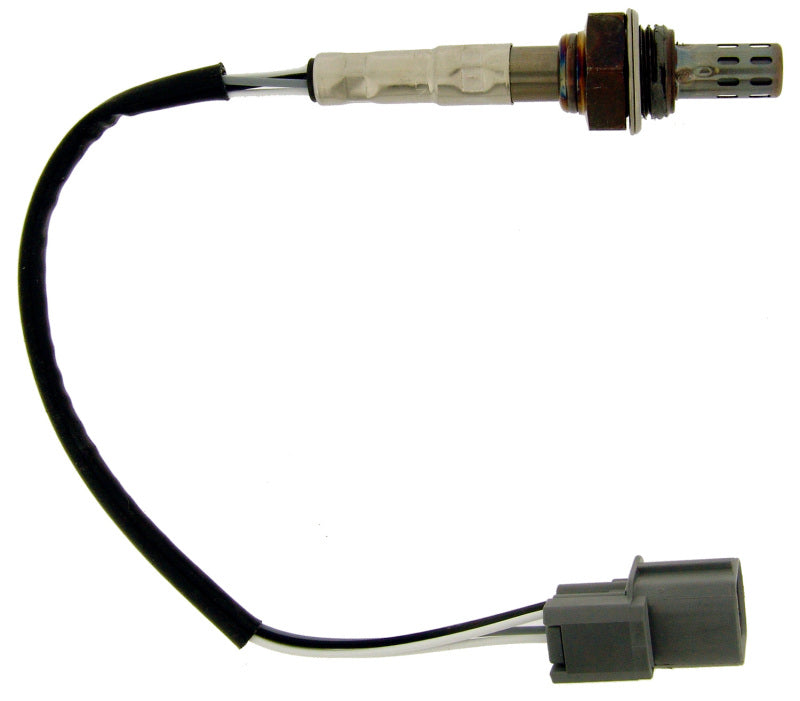

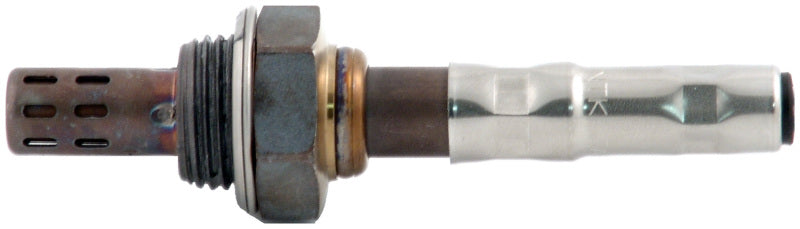

NGK's direct fit oxygen sensor for the Honda B16, B18 and B20 is a heated, 4-wire sensor with an OE-type connector, sold under the NTK name as part 24169. It replaces a worn or failed sensor on applications such as the Accord, Prelude and CR-V without any splicing. The wire length and connector are set for the vehicle, so there is no harness work.
Key features

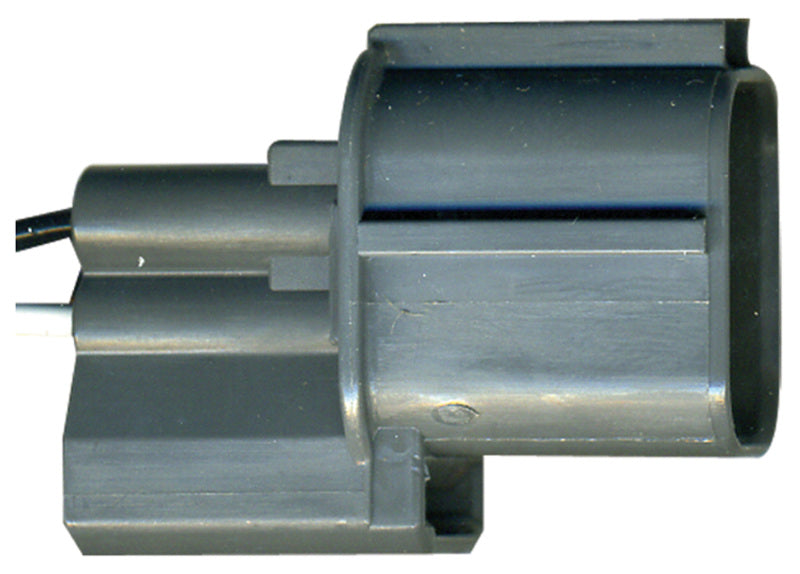

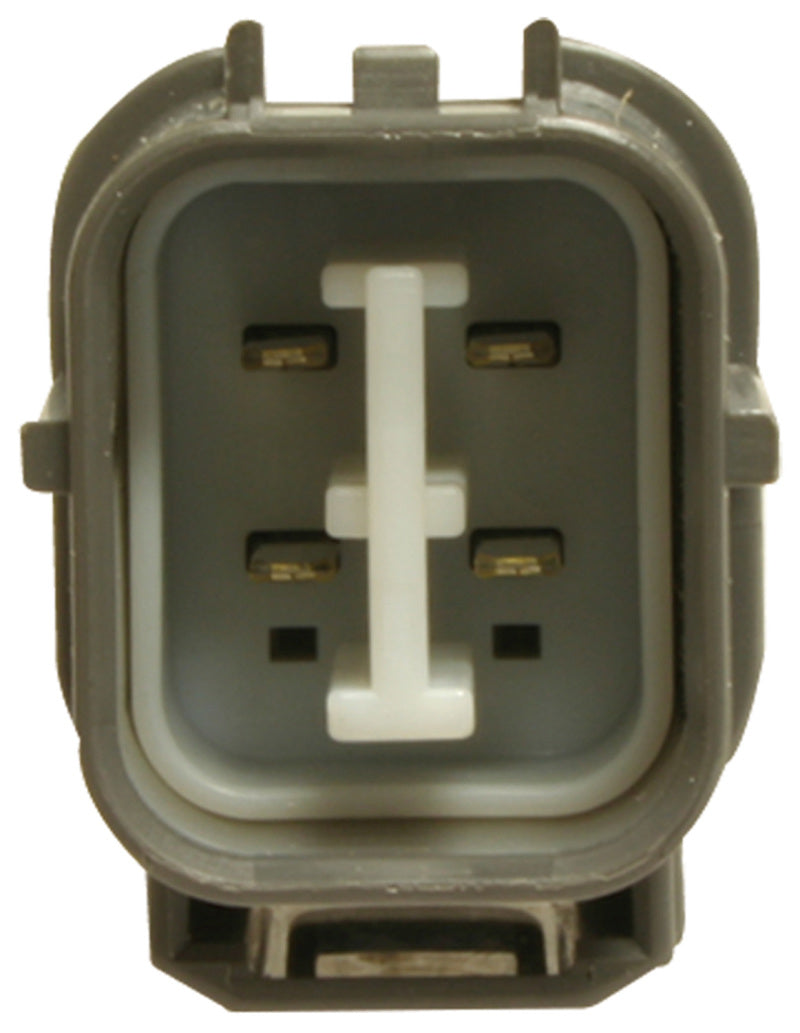

- Direct fit connector: it has an OE-type connector and attaching hardware, so it plugs in without cutting wires.
- Closed loop feedback: it feeds the ECU constant data to help control air-fuel ratio. It also alerts OBDII systems to fuel delivery or catalytic converter problems.
- Heated element: the heater brings the sensor up to operating temperature quickly, so closed loop control starts sooner.
- Dual-coated platinum element: NGK says this increases longevity and gives the quickest response time.
- Emissions and efficiency: oxygen sensors play a critical role as part of the vehicle's on-board diagnostic system in maintaining optimal engine performance, maximizing fuel efficiency and reducing harmful emissions.
Specifications
| Brand | NGK |
|---|---|
| Part number | 24169 |
| Engine | Honda B16, B18, B20 |
| Sensor type | Heated oxygen sensor |
| Number of wires | 4 |
| Thread diameter | 18 mm |
| Wire length | 318 mm (12.5 in) |
| Connector type | OE type |
| Mounting type | Threaded |
Fitment
Fits Honda B16, B18 and B20. Confirm your vehicle below, or match by part number 24169 before ordering.
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1997 | Acura | CL | Base |
| 1997 | Acura | CL | Premium |
| 1997-2001 | Acura | Integra | GS |
| 1994-2001 | Acura | Integra | GS-R |
| 1994-2001 | Acura | Integra | LS |
| 1994-1998 | Acura | Integra | RS |
| 1995-1996 | Acura | Integra | Special Edition |
| 1997-1998,2000-2001 | Acura | Integra | Type R |
| 1992-1994 | Acura | Vigor | GS |
| 1992-1994 | Acura | Vigor | LS |
| 1996 | Honda | Accord | 25th Anniversary Edition |
| 1991,1996-1997 | Honda | Accord | DX |
| 1990-1997 | Honda | Accord | EX |
| 1991,1996-1997 | Honda | Accord | LX |
| 1991,1993,1997 | Honda | Accord | SE |
| 1996-1997 | Honda | Accord | Value Package |
| 1994-1997 | Honda | Civic del Sol | VTEC |
| 1998-2001 | Honda | CR-V | EX |
| 1997-2001 | Honda | CR-V | LX |
| 2000-2001 | Honda | CR-V | SE |
| 1995-1998 | Honda | Odyssey | EX |
| 1995-1998 | Honda | Odyssey | LX |
| 1996 | Honda | Prelude | S |
| 1995 | Honda | Prelude | SE |
| 1990-1996 | Honda | Prelude | Si |
| 1990-1994 | Honda | Prelude | Si 4WS |
| 1990-1991 | Honda | Prelude | Si ALB |
| 1993-1996 | Honda | Prelude | VTEC |
| 1996-1999 | Isuzu | Oasis | LS |
| 1996-1999 | Isuzu | Oasis | S |
