Skunk2 Alpha Series Forged 4340 Connecting Rods for Acura TSX Honda Civic K24A/Z

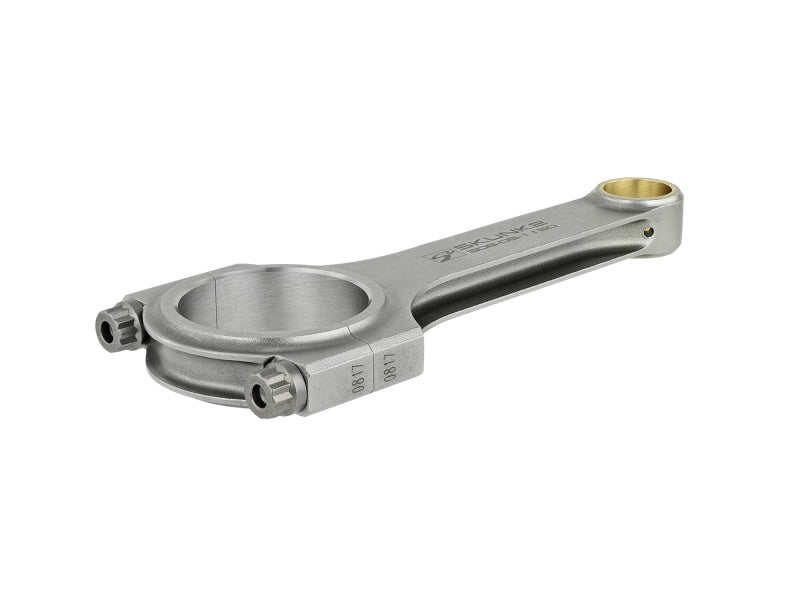

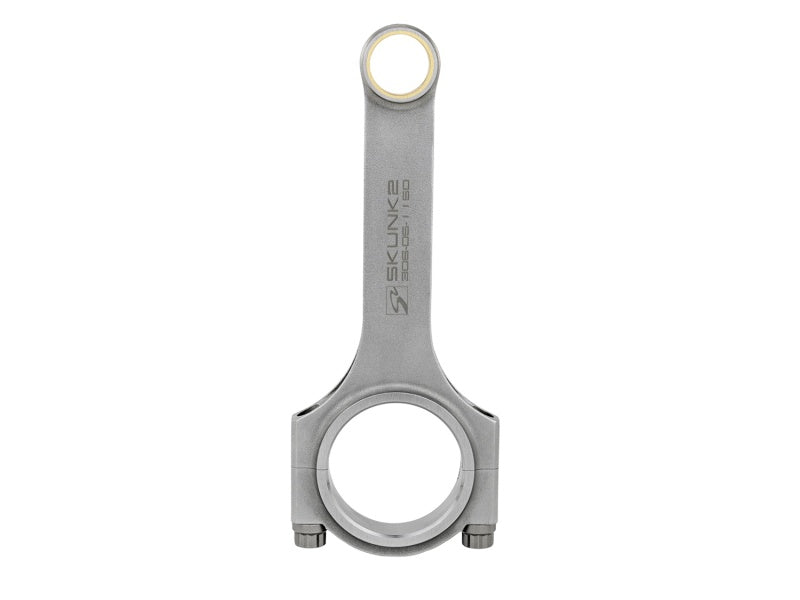

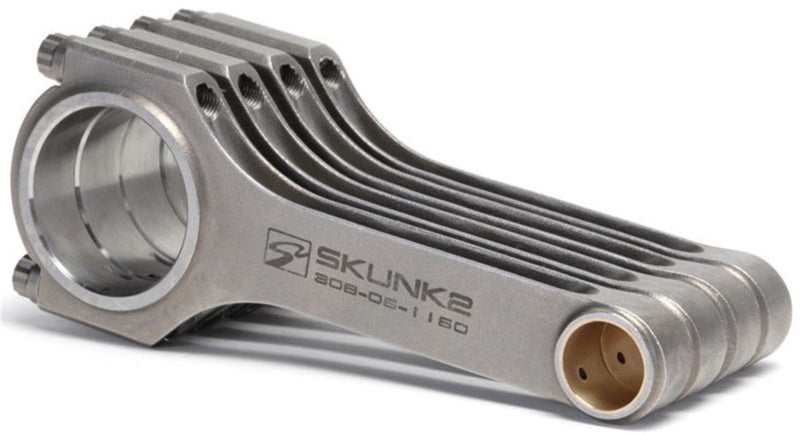

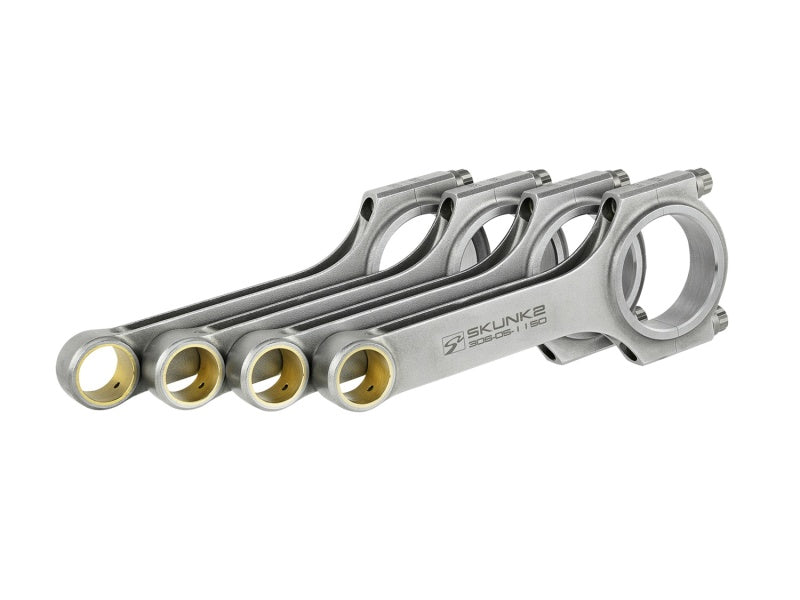

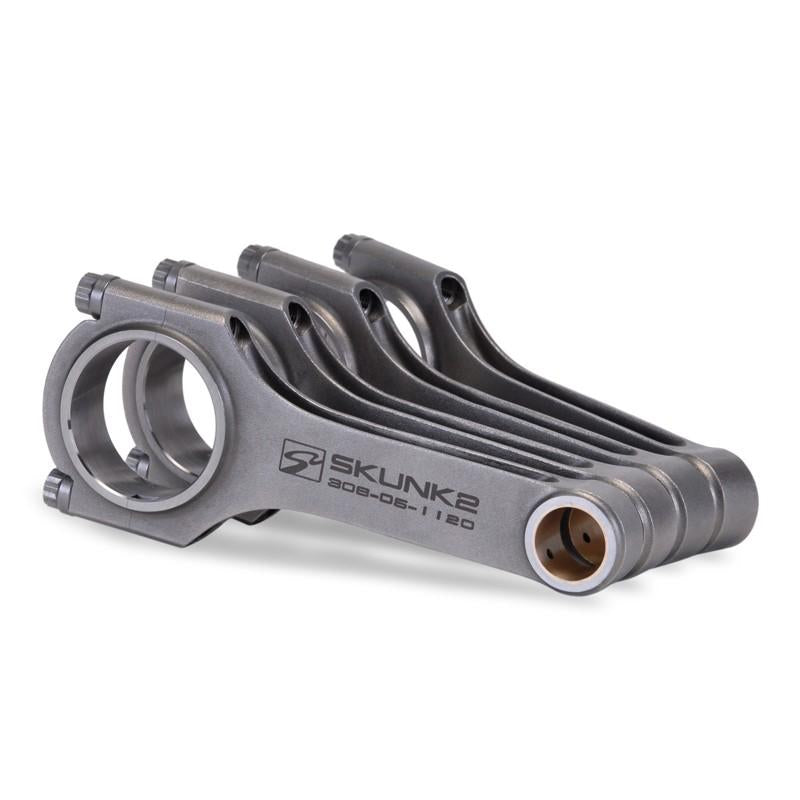

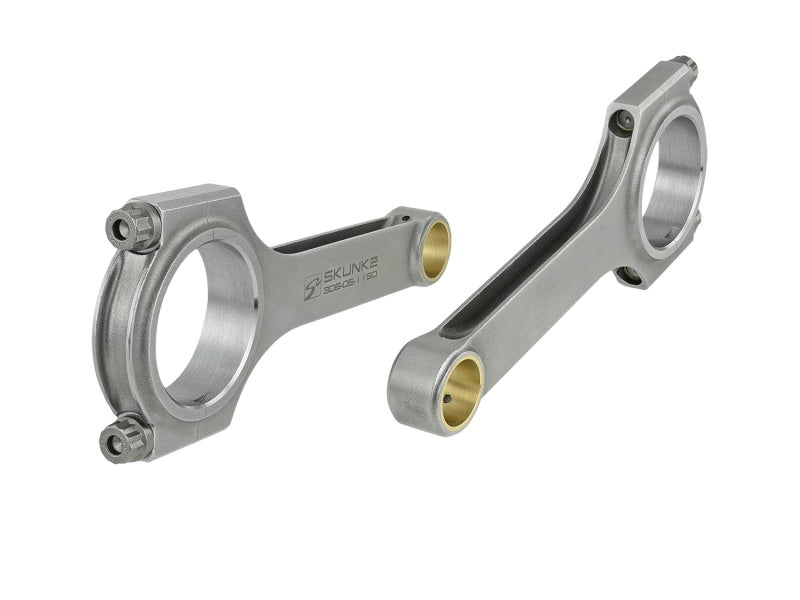

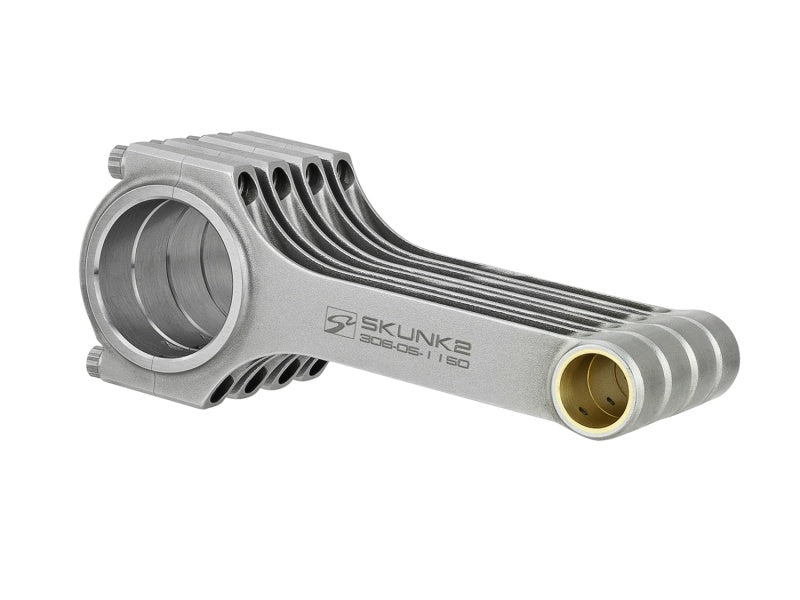

Skunk2's Alpha Series connecting rods for the Honda K24A and K24Z are a set of four forged 4340 chromoly H-beam rods, part number 306-05-1150. They suit K24 builds that need more strength than stock rods offer, with the pin end sized for aftermarket pistons. Skunk2 states they are capable of handling more than 900 hp.
Key features
- Forged 4340 chromoly, straight H-beam: Skunk2 uses material testing and works with its foundry to control steel quality. The H-beam shape is meant to give a strong strength-to-weight ratio.
- Heat treated, tempered and shot peened: the shot peening reduces fatigue, and each rod is magna-flux inspected.
- Dual-pin oil passages: add lubrication at the wrist pin and add strength.

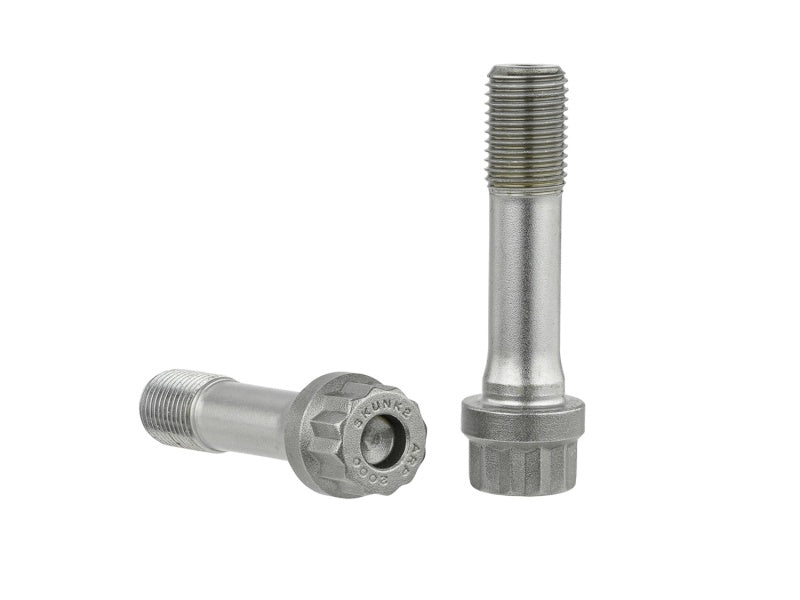

- 3/8-inch ARP2000/Skunk2 bolts and bronze wrist pin bushings: the bolts and bushings are included with the rods.
- Pin end for aftermarket pistons: fits most aftermarket pistons without machining. It is not compatible with OEM-style pistons.
- Balanced and FEA analyzed: balanced to within +/- 1 gram.
Specifications
| Brand | Skunk2 Racing |
|---|---|
| Part number | 306-05-1150 |
| Engine | Honda K24 (K24A1, K24A2, K24A4, K24A8, K24Z) |
| Material | Forged 4340 chromoly steel |
| Design | Straight H-beam |
| Quantity | Set of 4 |
| Length | 152.00 mm |
| Rod bolts | 3/8-inch ARP2000/Skunk2 |
| Wrist pin bushings | Bronze |
| Balance | Within +/- 1 gram |
Forged internals only go as far as the block holding them. An EPOXY54 kit for the K24 gives the block closed-deck strength without machining, with 21,000 psi compressive strength and a DIY install in 5 steps.
Fitment
Fits Honda K24. Confirm your vehicle below, or match by part number 306-05-1150 before ordering.
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004-2008 | Acura | TSX | Base |
| 2012 | Honda | Civic | Si |
