Skunk2 Ultra Race B Series Manifold Hardware Kit for Honda Civic Si B16 B18 B20

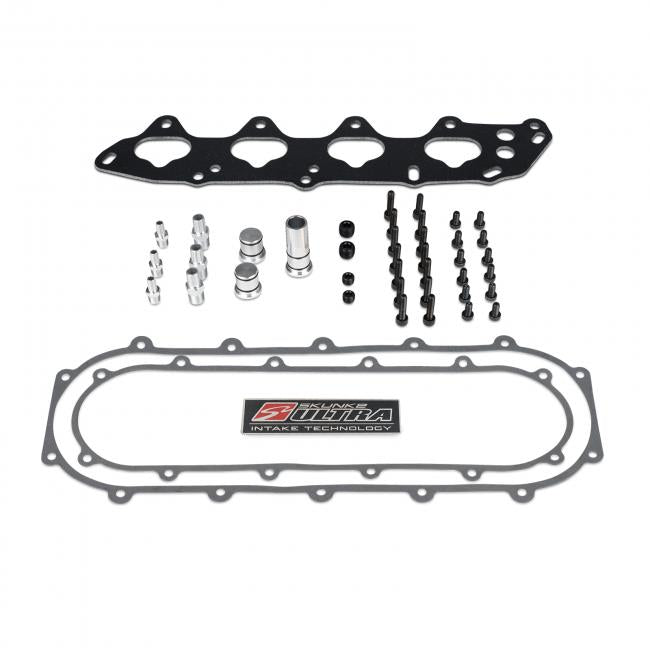

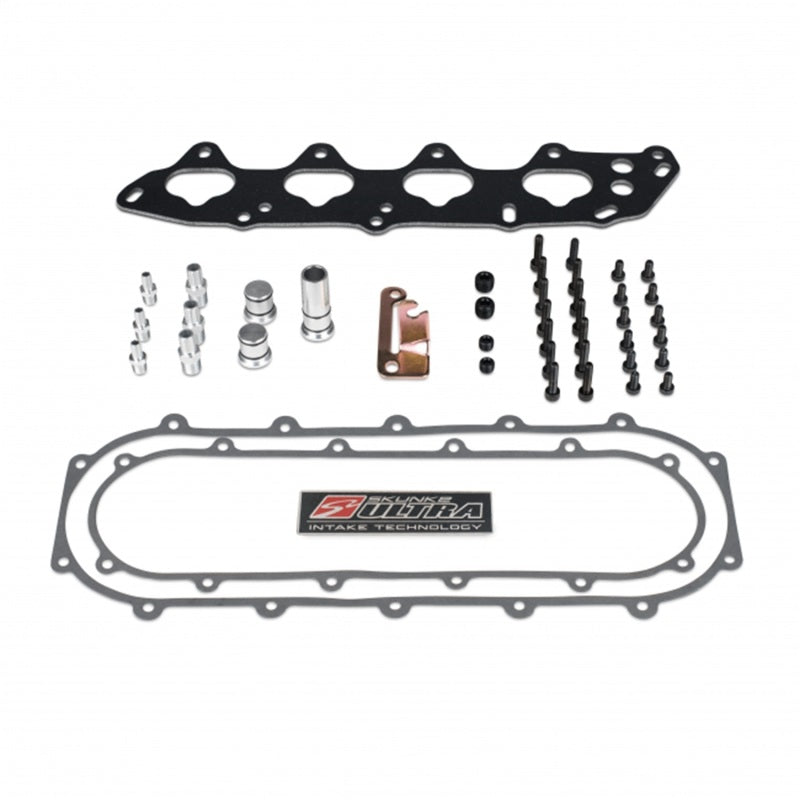

The Skunk2 Racing Ultra Race B Series manifold hardware kit replaces the fasteners, fittings and gaskets for an Ultra Race intake manifold on Honda B16, B18 and B20 engines. It suits a builder who has lost or damaged hardware during a teardown, or who needs to reassemble the manifold on a Civic Si or Civic del Sol. It is a service kit, so it does not include the manifold itself.
Key features
- Gaskets included: two intake manifold gaskets and a thermal manifold gasket, so the joints can be resealed on reassembly.
- Fittings and plugs: three 0.375 in. and three 0.25 in. barb fittings, two 0.125 in. and two 0.25 in. hex socket plugs, plus a water port fitting and a water port plug.
- Bolts in two lengths: twelve M6x1.0x12 mm and fourteen M6x1.0x25 mm bolts.
- Throttle cable bracket: replaces a missing or bent bracket.
- Badge and decal: one Skunk2 Ultra badge and one 12 in. Skunk2 Racing decal.
Specifications
| Brand | Skunk2 Racing |
|---|---|
| Part number | 907-05-9000 |
| Engine | Honda B16, B18, B20 |
| Application | Skunk2 Ultra Race B Series intake manifold |
| Bolts | (12) M6x1.0x12 mm, (14) M6x1.0x25 mm |
| Gaskets | (2) intake manifold, (1) thermal manifold |
Fitment
Fits Honda B16, B18 and B20. Confirm your vehicle below, or match by part number 907-05-9000 before ordering.
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1997-2001 | Acura | Integra | GS |
| 1992-2001 | Acura | Integra | GS-R |
| 1994-2001 | Acura | Integra | LS |
| 1994-1998 | Acura | Integra | RS |
| 1995-1996 | Acura | Integra | Special Edition |
| 1997-1998,2000-2001 | Acura | Integra | Type R |
| 1999-2000 | Honda | Civic | Si |
| 1994-1995 | Honda | Civic del Sol | VTEC |
