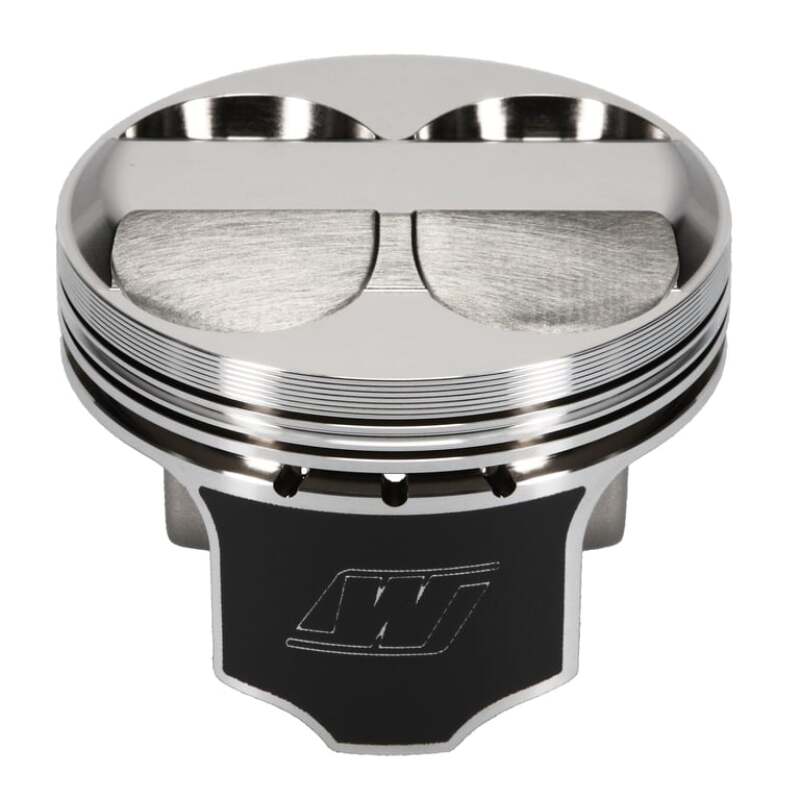

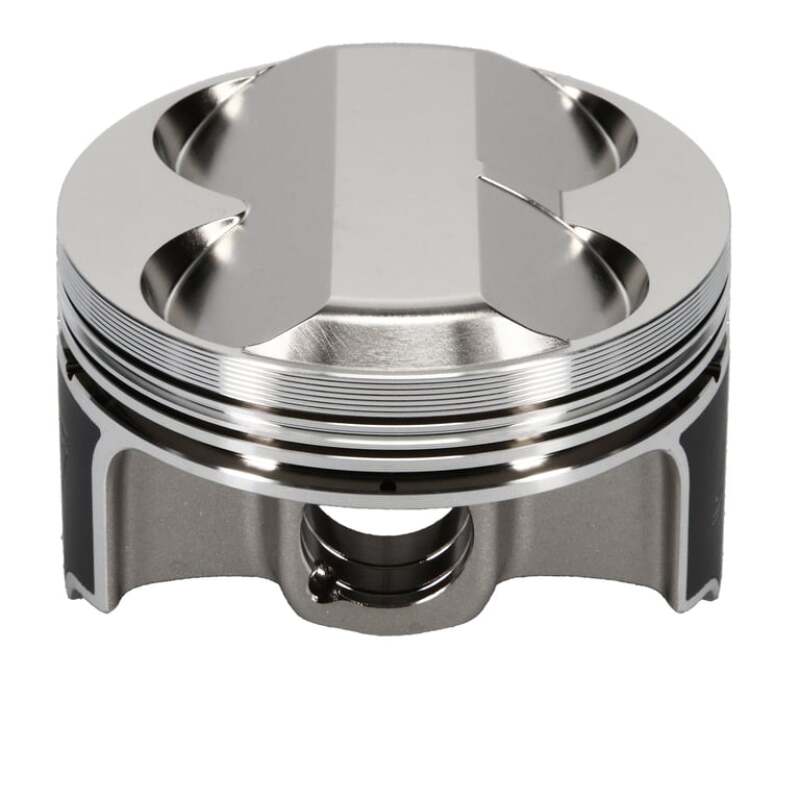

Wiseco piston for Honda B16 – 6567M84AP

Wiseco Professional Forged Piston 84.0 mm +2cc Dome for Honda B16 (Single Piston)

Sale price  $240.99 USD Regular price  $241.16 USD
Skip to product information
Wiseco piston for Honda B16 – 6567M84AP

Wiseco Professional Forged Piston 84.0 mm +2cc Dome for Honda B16 (Single Piston)

6567M84AP
Sale price  $240.99 USD Regular price  $241.16 USD

Wiseco's Professional Series forged piston gives the Honda B16 an 84.00 mm bore and a +2cc dome. Wiseco lists it for the B16A. It is a strutted 2618 forged design for heavy-duty race builds. It is sold as a single piston, so order one per cylinder.

Key features

  • 2618 aluminum, forged: forged and machined in the USA from 2618 alloy for improved tensile strength.
  • Strutted design, 30.00 mm compression height: a strutted forging with a +2cc dome on an 84.00 mm bore.
  • ArmorGlide skirt coating: resists seizure, reduces friction and runs quieter.
  • Ring grooves and sealing features: precision ring grooves, an anti-detonation groove and extra ring-seal features. Rings are included.
  • Forced pin oiling: the crown is fully machined, and the wrist pin is included.

Specifications

Brand Wiseco
Part number 6567M84AP
Engine Honda B16 (listed by Wiseco for B16A)
Bore 84.00 mm
Compression height 30.00 mm
Piston volume +2cc dome
Crown Dome
Material 2618 aluminum, forged (strutted)
Finish ArmorGlide skirt coating
Quantity 1 (single piston)
Ring thickness (top / second / oil) 1.0 mm / 1.2 mm / 2.8 mm
Rings and wrist pin Included
Made in USA

Forged pistons only go as far as the block holding them. An EPOXY54 kit for the B16 gives the block closed-deck strength without machining and installs DIY in 5 steps.

Fitment

Fits Honda B16. Match by part number 6567M84AP before ordering.

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or reproductive harm. For more information, go to www.P65Warnings.ca.gov.
