EPOXY54 for BMW N54 – Block Filler Epoxy Kit (Open Deck to Closed Deck)

EPOXY54 kit made for the BMW N54 (N54B30) inline-6

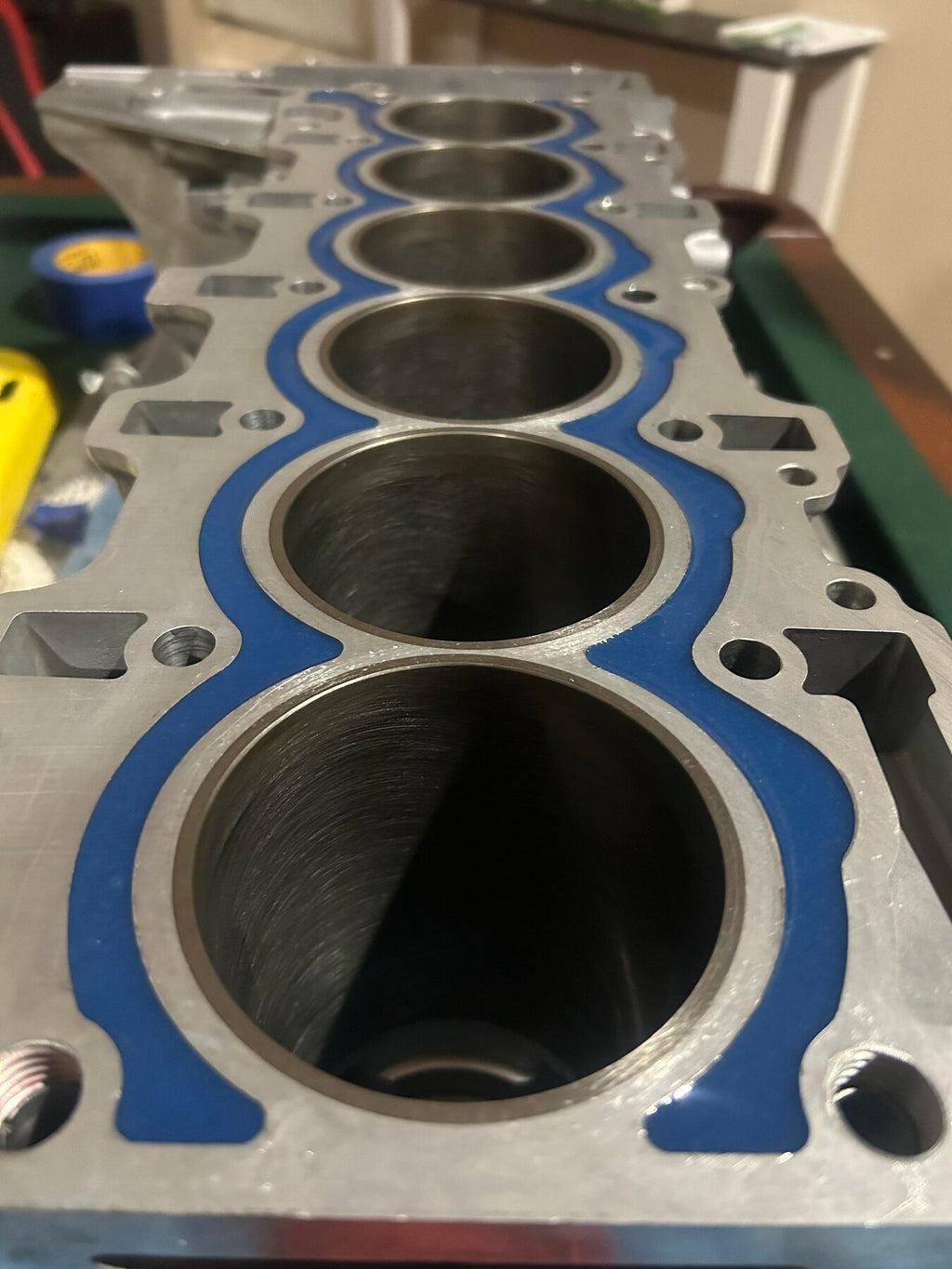

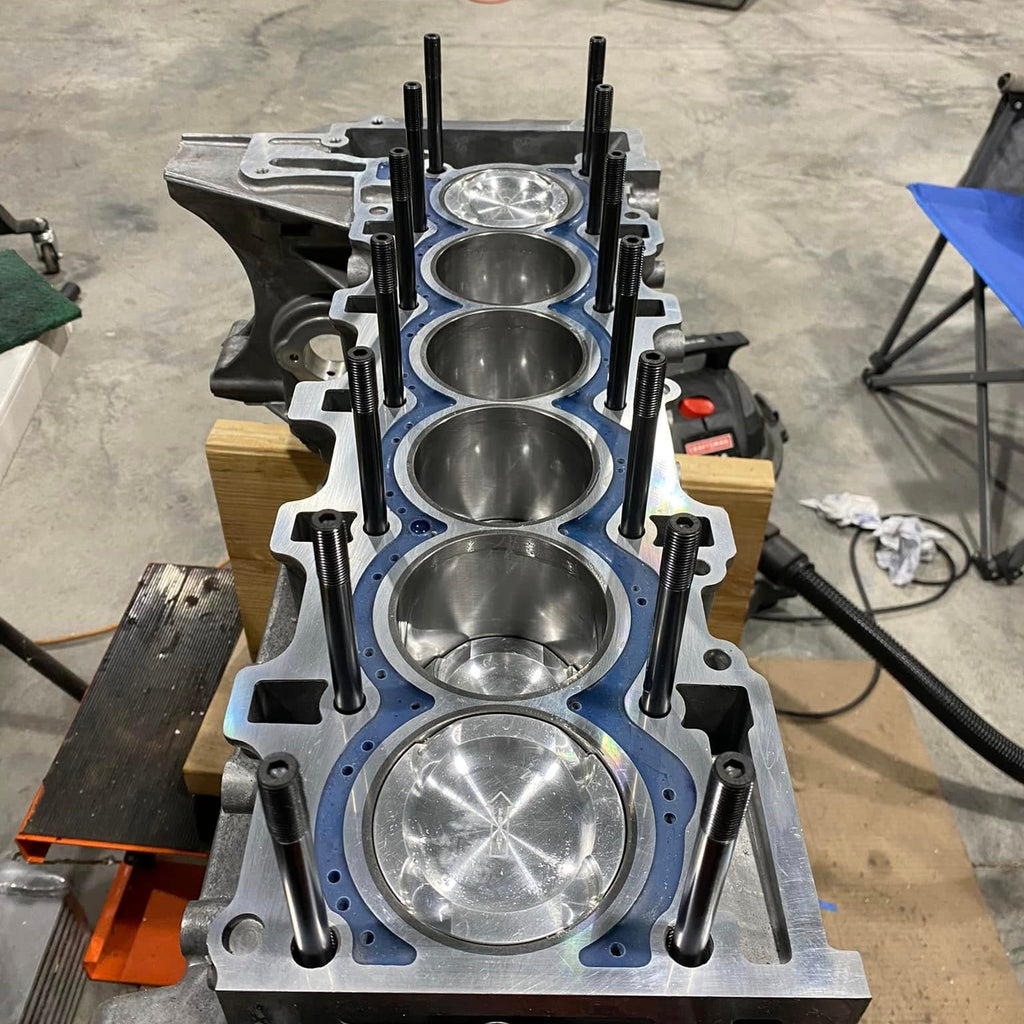

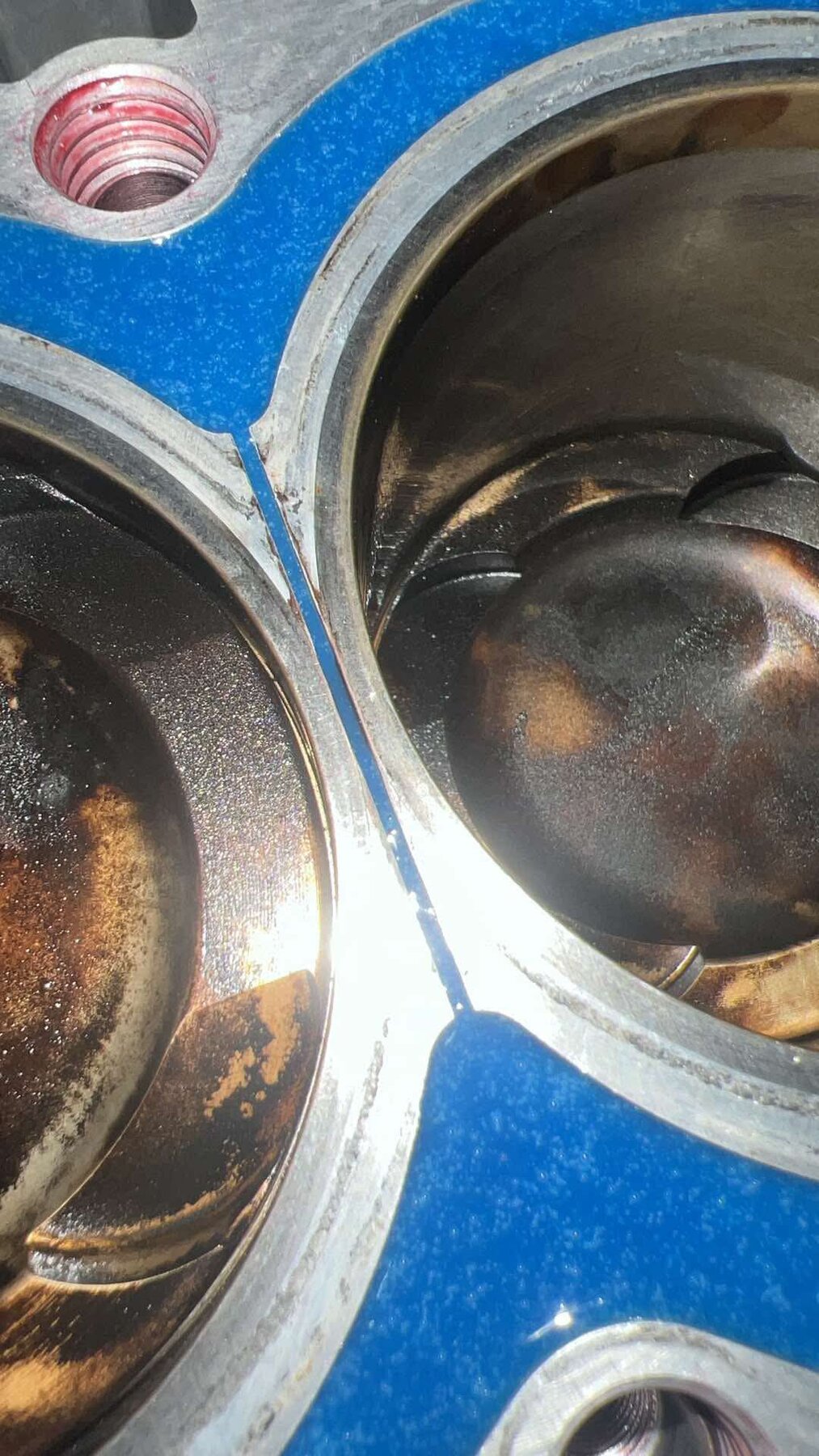

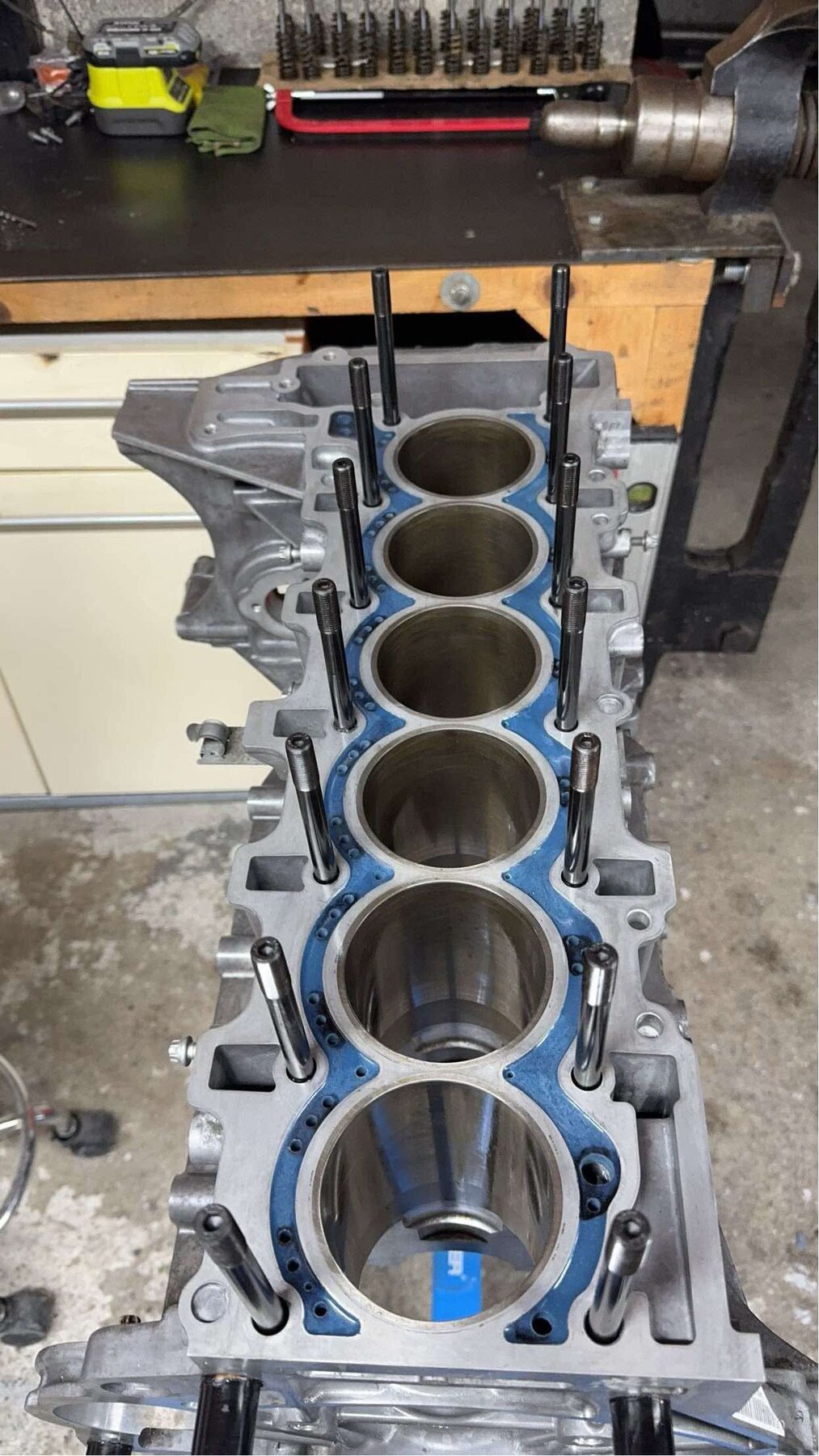

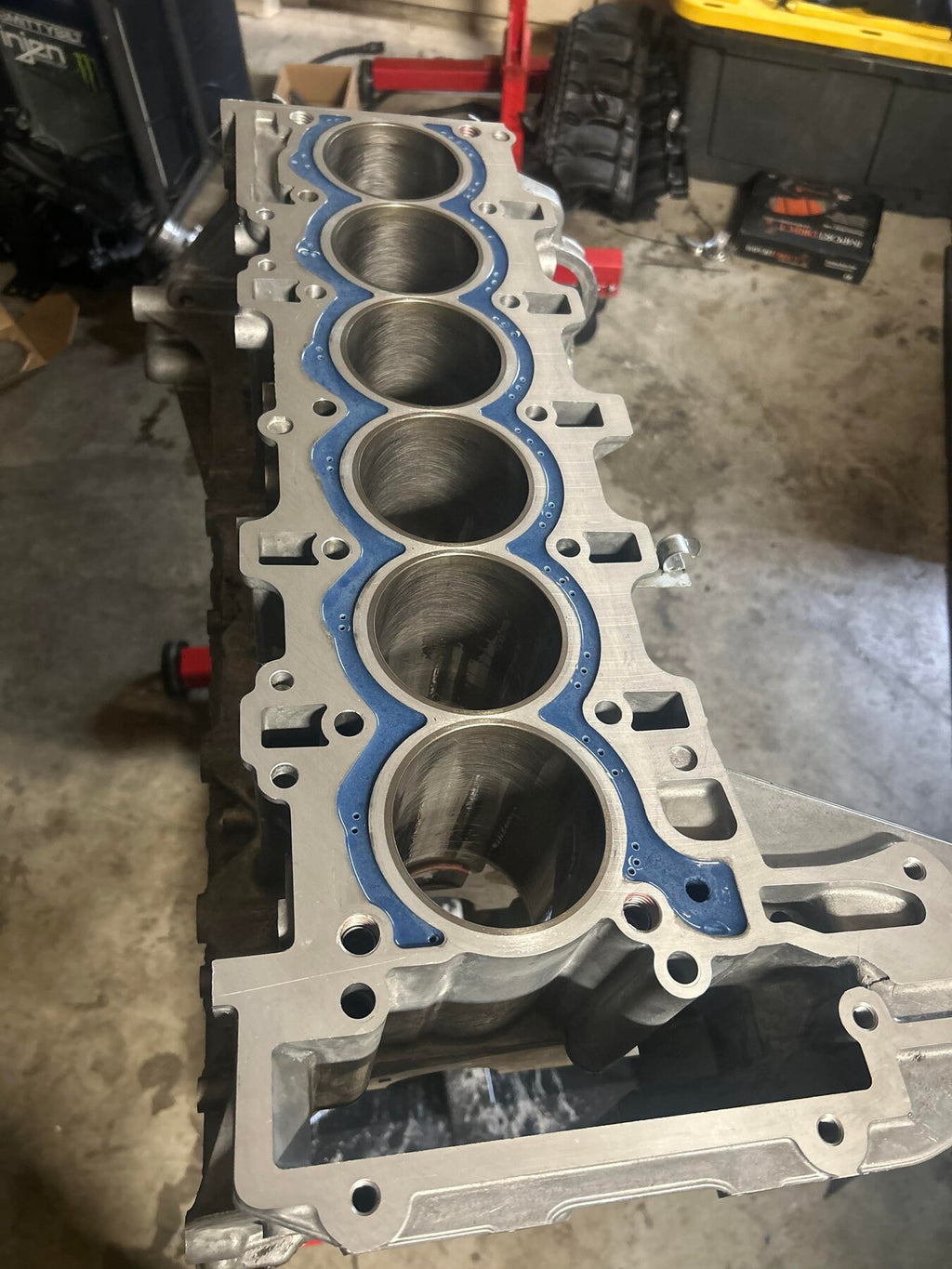

The BMW N54 has an open-deck aluminum block. EPOXY54 is a two-part epoxy that fills the open deck around the cylinders, giving the bores much more support under high boost, with no machining required.

• Sized for the N54: each kit contains the right volume for an inline-6 block.
• Partial fill with OEM coolant capability: keeps stock cooling, so it suits street and daily-driven cars.
• Thermal expansion matched to aluminum; non-expanding, non-shrinking, 21,000 psi compressive strength.
• Cures in 24 hours and resists coolant. Can be applied before or after machine work.
• Instructions and an install video are included with every kit.

An N54 running EPOXY54 has run a 7.980 ET at 171.84 MPH in the quarter mile (see the timeslip photo).

Need a full dry block fill for track or drag use? See the main EPOXY54 page for all engine sizes and dry block options.

Complete your N54 build

• EPOXY54 Install Kit: the tools to apply the epoxy and drill the coolant passages.
• ARP Head Stud Kit, BMW N54
• BMW N54 Rebuild Kit by EPOXY54
• N54 Exhaust Manifold Heat Shield

Shop all BMW N54 parts

How to install

1. Fill the block with a temporary solute (sugar or salt).

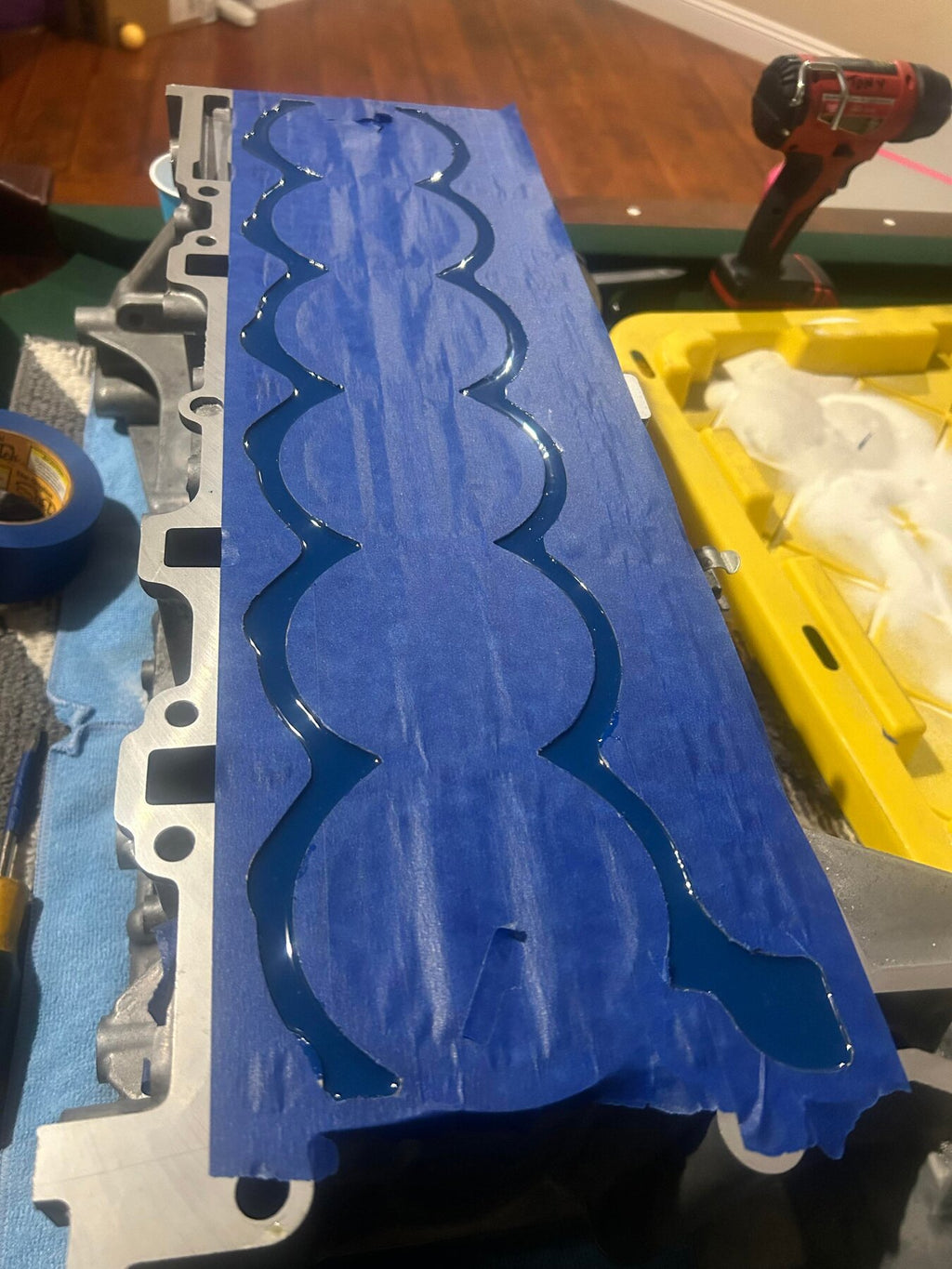

2. Pour the 2-part epoxy to fill ¾" of the block.
3. Let it cure for 24 hours.

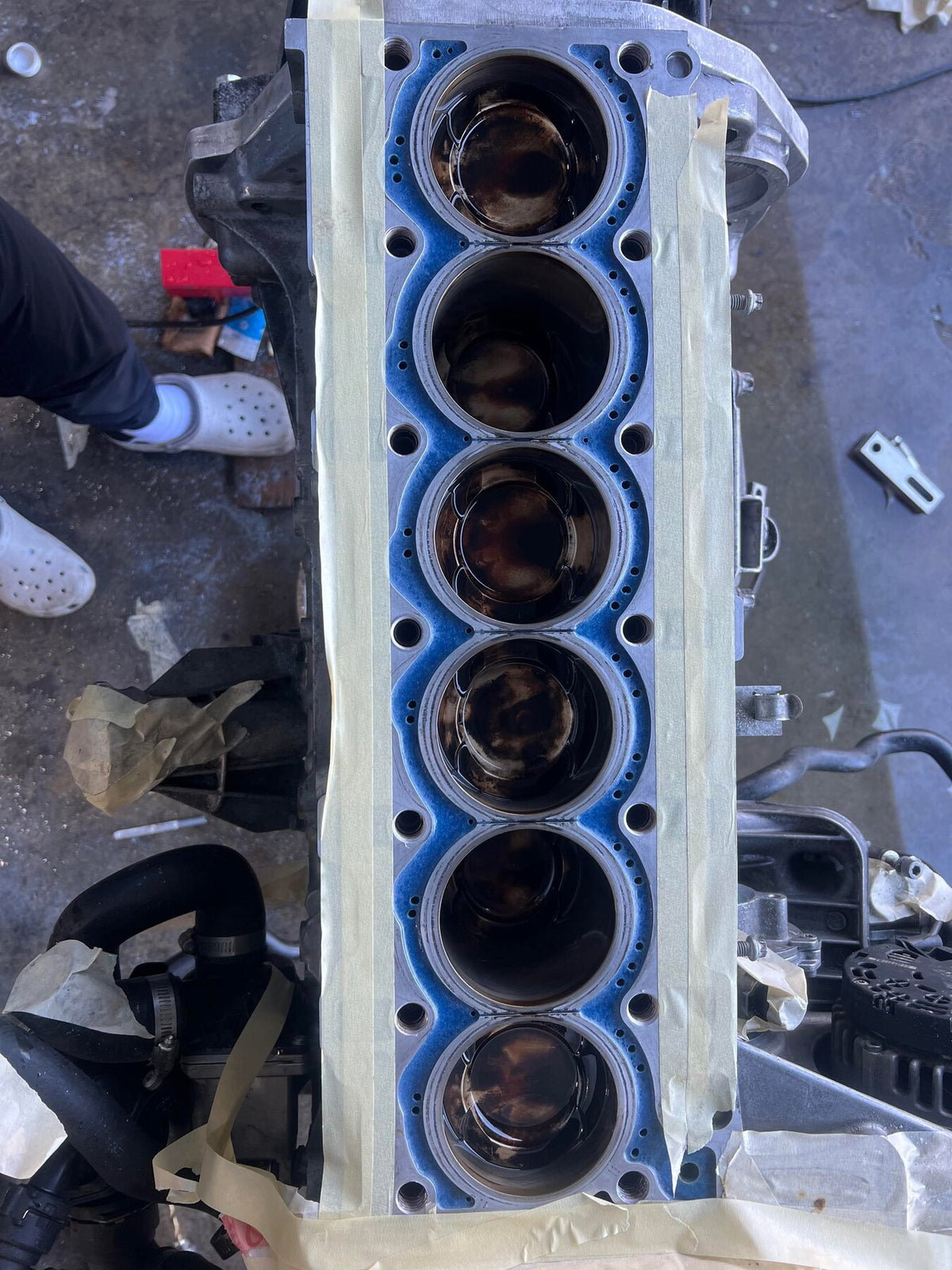

4. Drill the coolant passages to match the head gasket.
5. Dissolve the solute with water, leaving a durable, custom-fit epoxy layer.

Made in USA
